TB-82

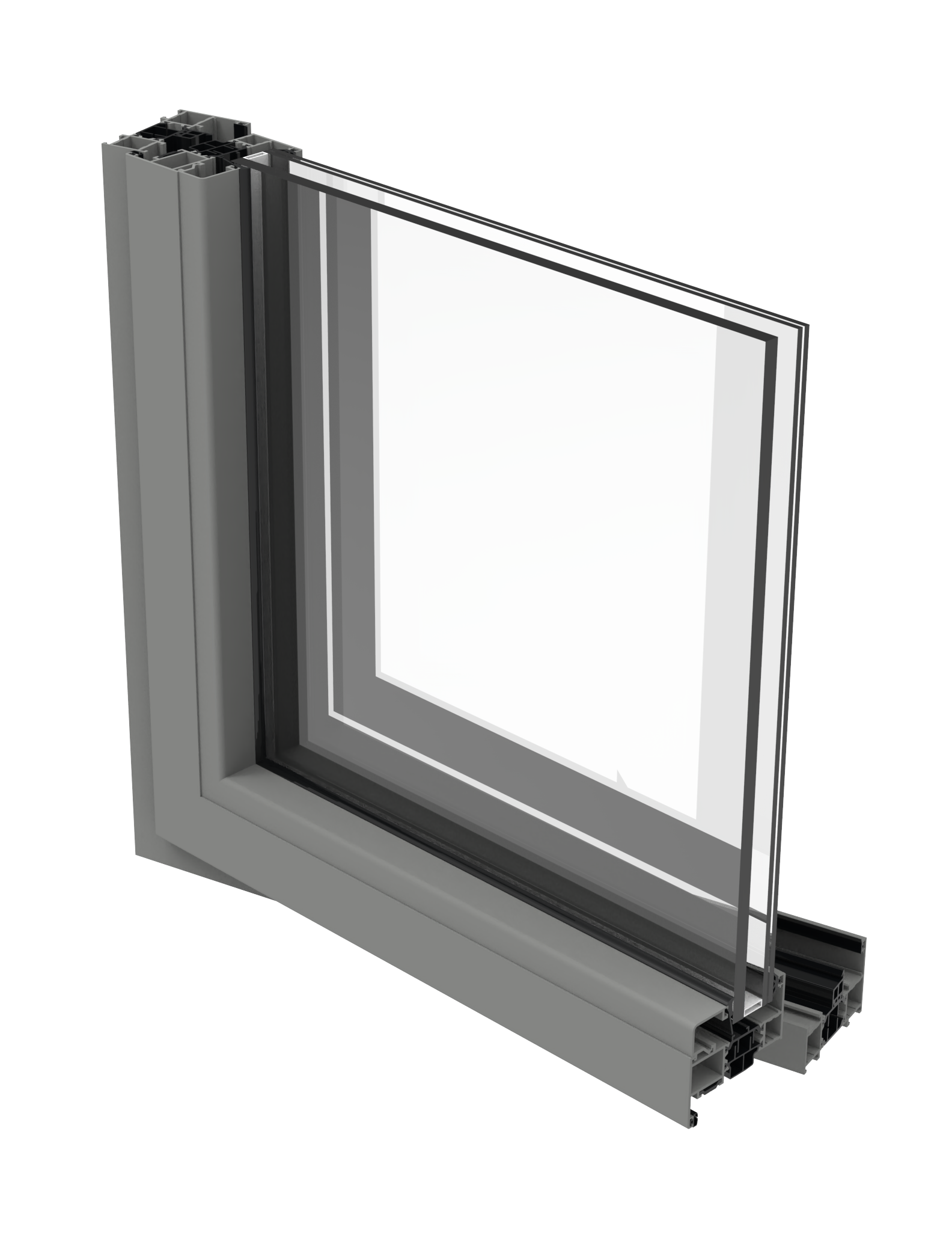

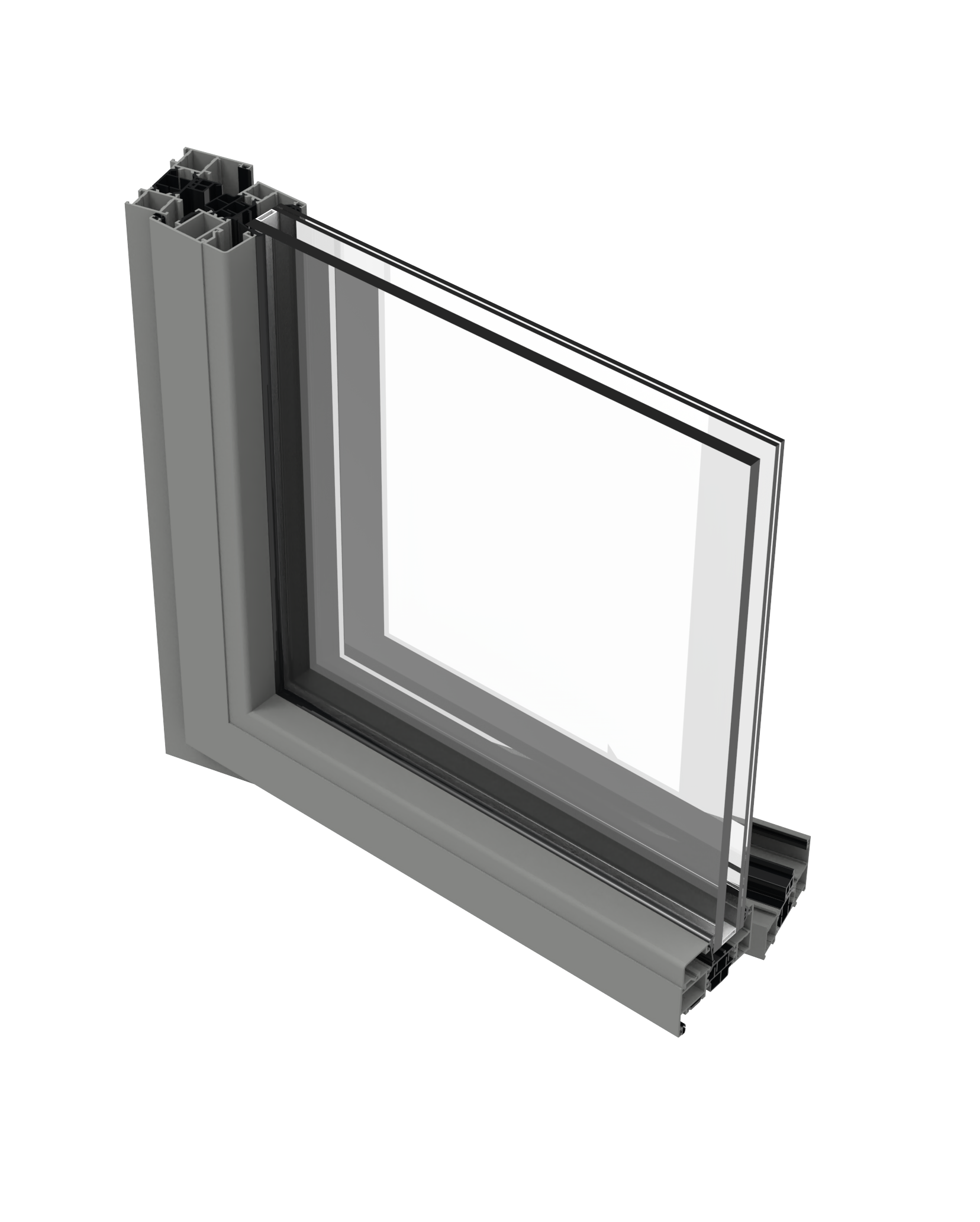

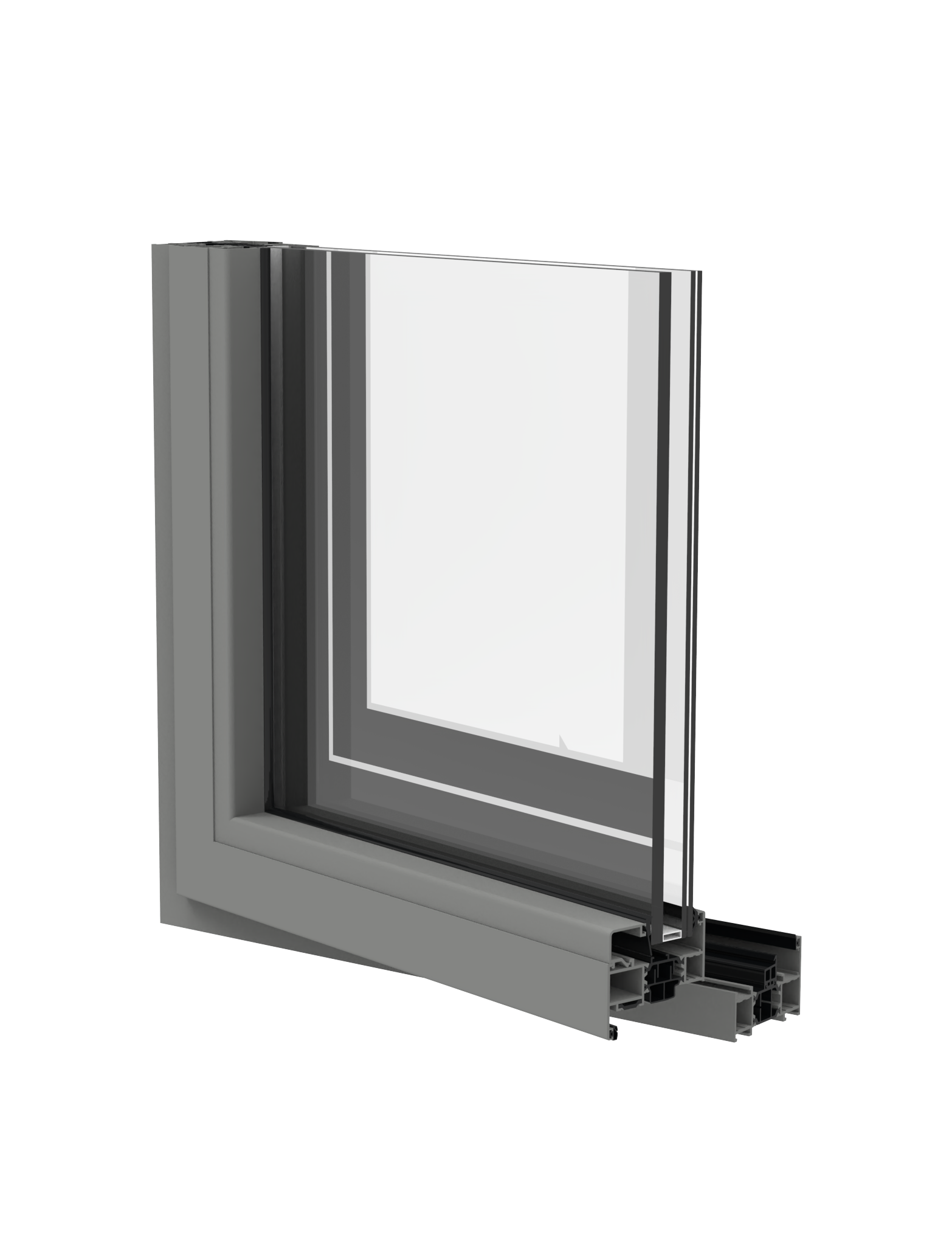

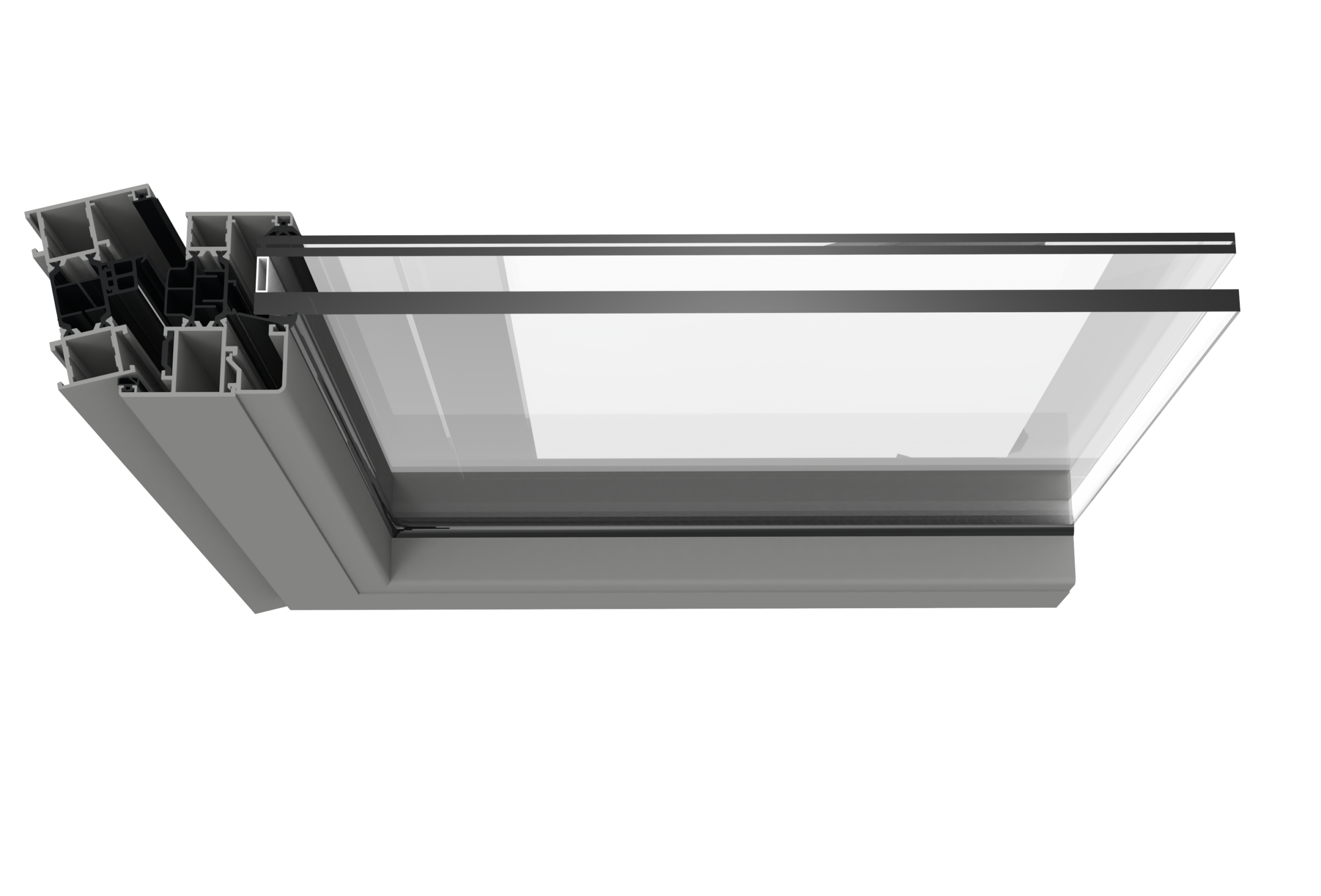

Window system Open-in casements

The system is glazed internally to accommodate 28mm to 56mm double glazed units, using standard beads. As with all Brital systems the Til & Turn window system is manufactured to exacting standards, enabling economy to be combined with strength to give many years of aesthetic, trouble-free operation.


DOWNLOAD AREA


Ask for more information
on this product

SIZE

– The system is glazed internally to accommodate
28mm to 56mm double glazed units, using standard
beads

DESIGN

– Aluminium profiles are extruded from aluminium alloy
6063 T6 complying with the recommendations of
BS EN 12020‑2:2008 / BS EN 755‑9:2008

PERFORMANCE

– Air permeability – BS6375: Pt1:1983 test pressure 600 Pa
– Water tightness – BS6375: Pt1:1983 test pressure 600 Pa
– Wind resistance – BS6375: Pt1:1983 test pressure 2400 Pa

INSTALLATION

– Detailed installation instructions are provided which
should be strictly followed.
– Brital recommend the use of restrictors to prevent the
window opening more than 90° in the side hung mode.

PRODUCT DETAILS

The basic suite has long leg outer frame section to allow the window to be fitted at the back of the reveal. Also included in the basic suite of profiles are a range of vent and mullion/ transom sections. Various other profiles can be designed and incorporated allowing architects to achieve flexible designs. The system is glazed internally to accommodate 28mm to 56mm double glazed units, using standard beads. As with all Brital systems the Til & Turn window system is manufactured to exacting standards, enabling economy to be combined with strength to give many years of aesthetic, trouble-free operation.
