NTB-43-CASE

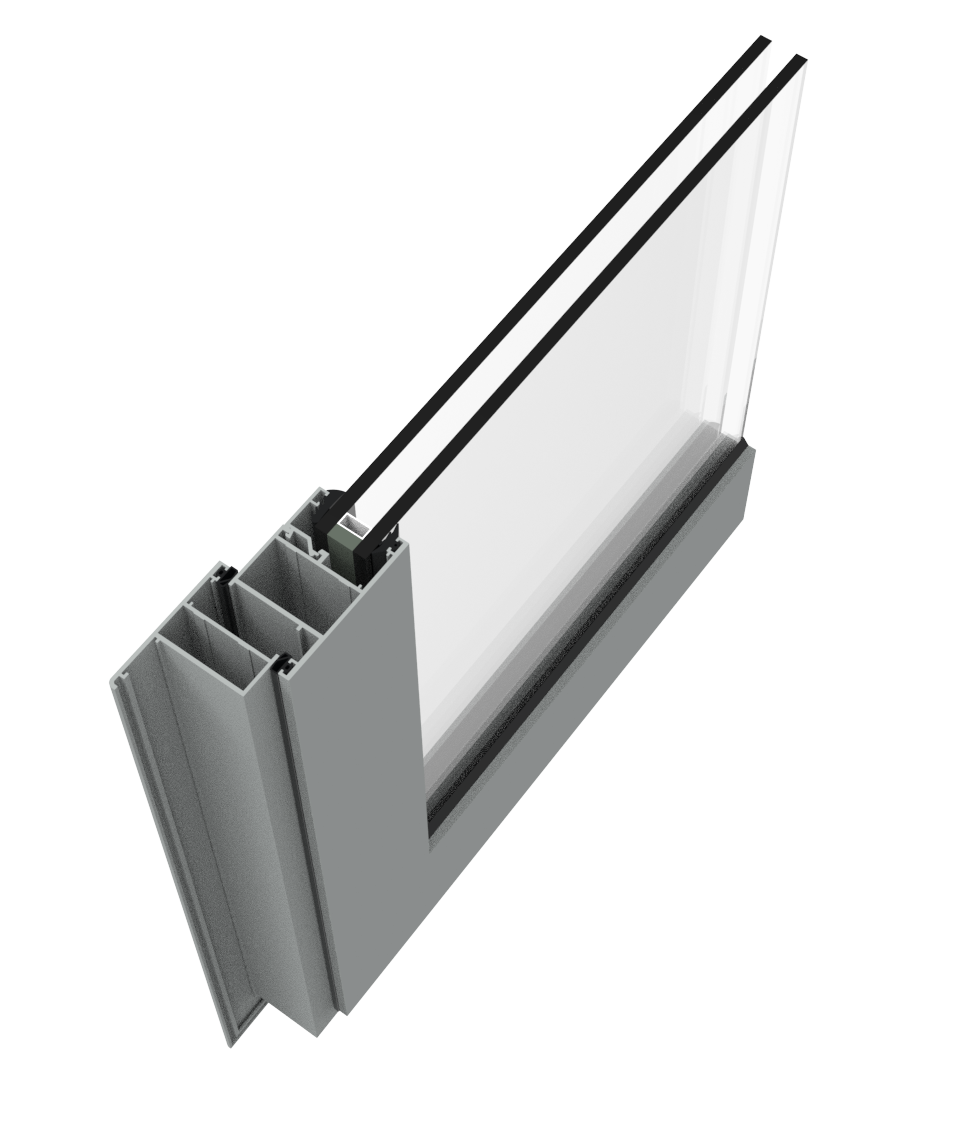

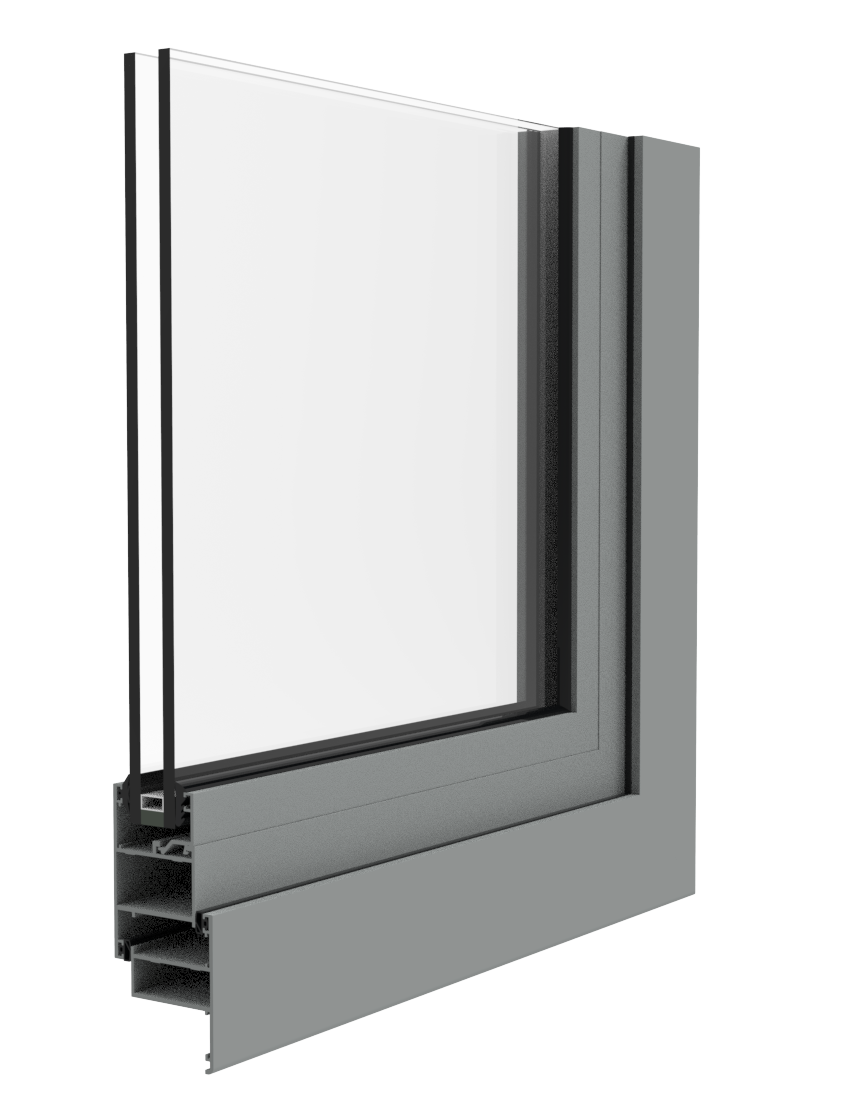

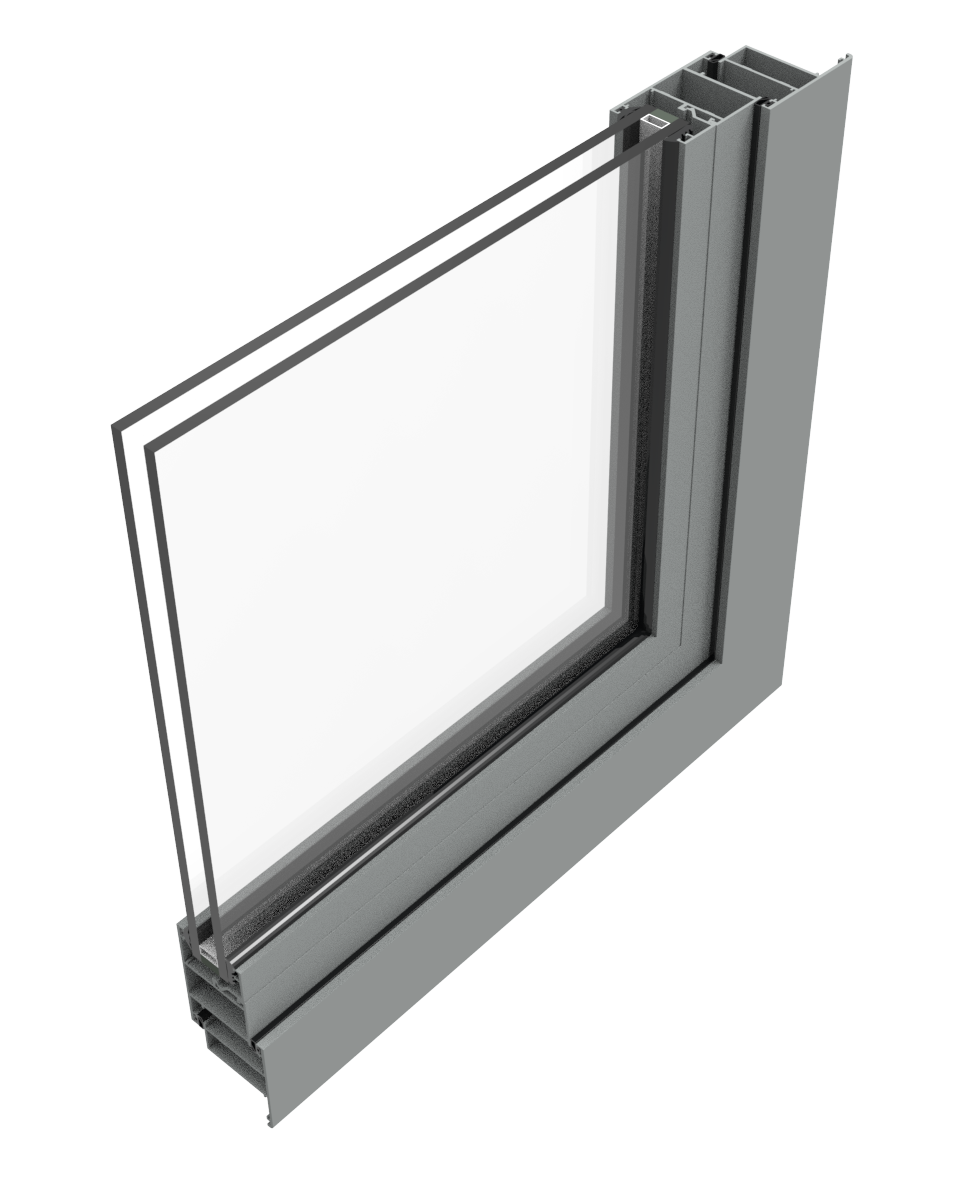

Case open-in casement window system (non-thermally broken)

The system is glazed internally to accommodate 6mm or 24mm double glazed units, using standard beads. As with all Brital systems, the NTB 43 CASE system is manufactured to exacting standards enabling economy to be combined with strength to give many years of aesthetic, trouble-free operation.


DOWNLOAD AREA


Ask for more information
on this product

SIZE

– Corners formed as 45 degree mitres to provide a
quality appearance, high performance and weather
resistance

DESIGN

– Economy is combined with strength to provide many
years of trouble free operation and to be aesthetically
pleasing.
– Designed to perform at wind resistances up to 2.4 kPa.

PERFORMANCE

– Thermal performance can achieve Uw of 1.6 W/m2K.
– Opening panels fully weather-sealed with EPDM gaskets.

INSTALLATION

– Accommodates various thicknesses of single and
double glazed units.
– Thermal Break frameless outward opening vent panels
can be incorporated.
– Neat fully sealed weather seal joints.

PRODUCT DETAILS

The basic suite has long and equal leg outer frame sections to allow the casement windows to be fitted against the internal reveal if required. Also included in the basic suite of profiles are a range of vent and mullion / transoms. Various other profiles can be designed and be incorporated allowing architects to achieve flexible designs. The system is glazed internally to accommodate 6mm or 24mm double glazed units, using standard beads. As with all Brital systems, the NTB 43 CASE system is manufactured to exacting standards enabling economy to be combined with strength to give many years of aesthetic, trouble-free operation.
