TB-HP-45

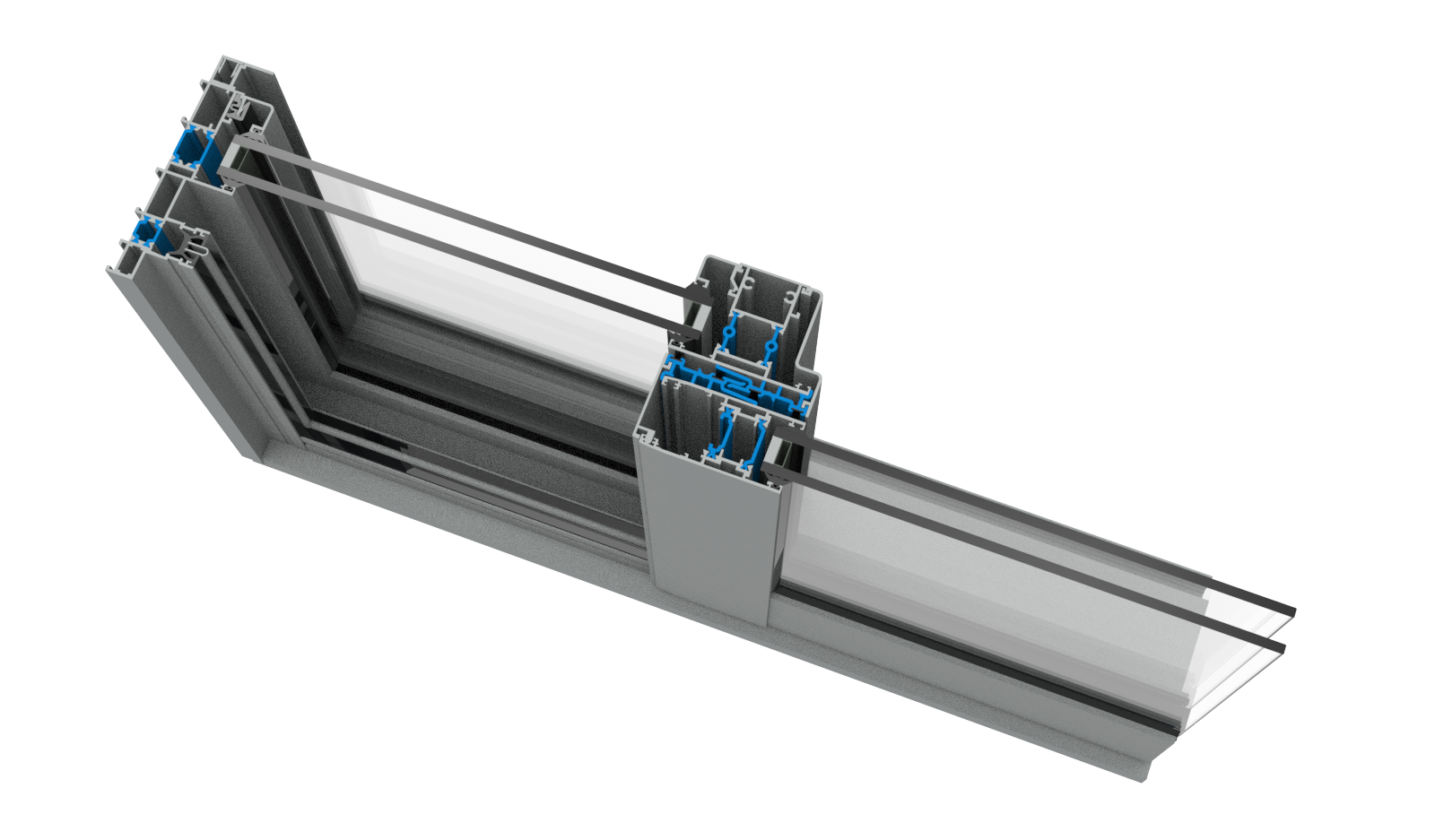

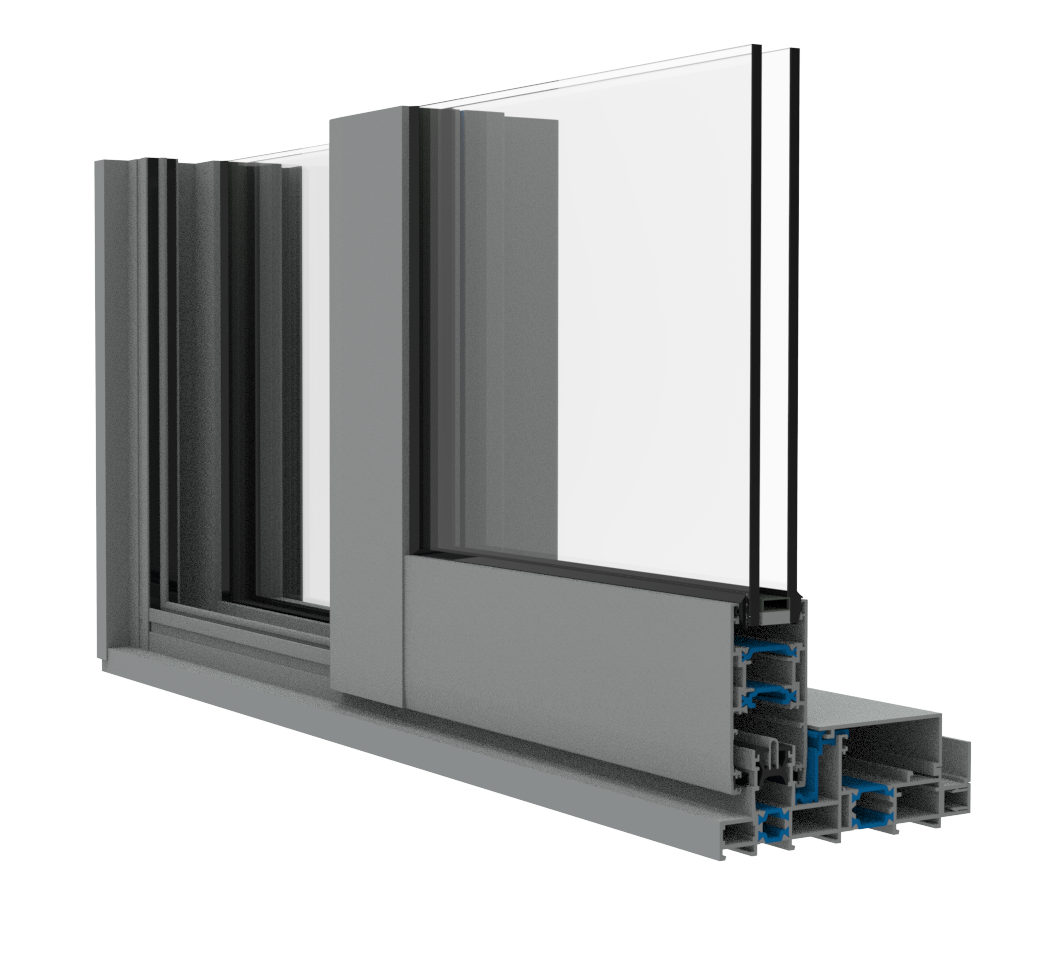

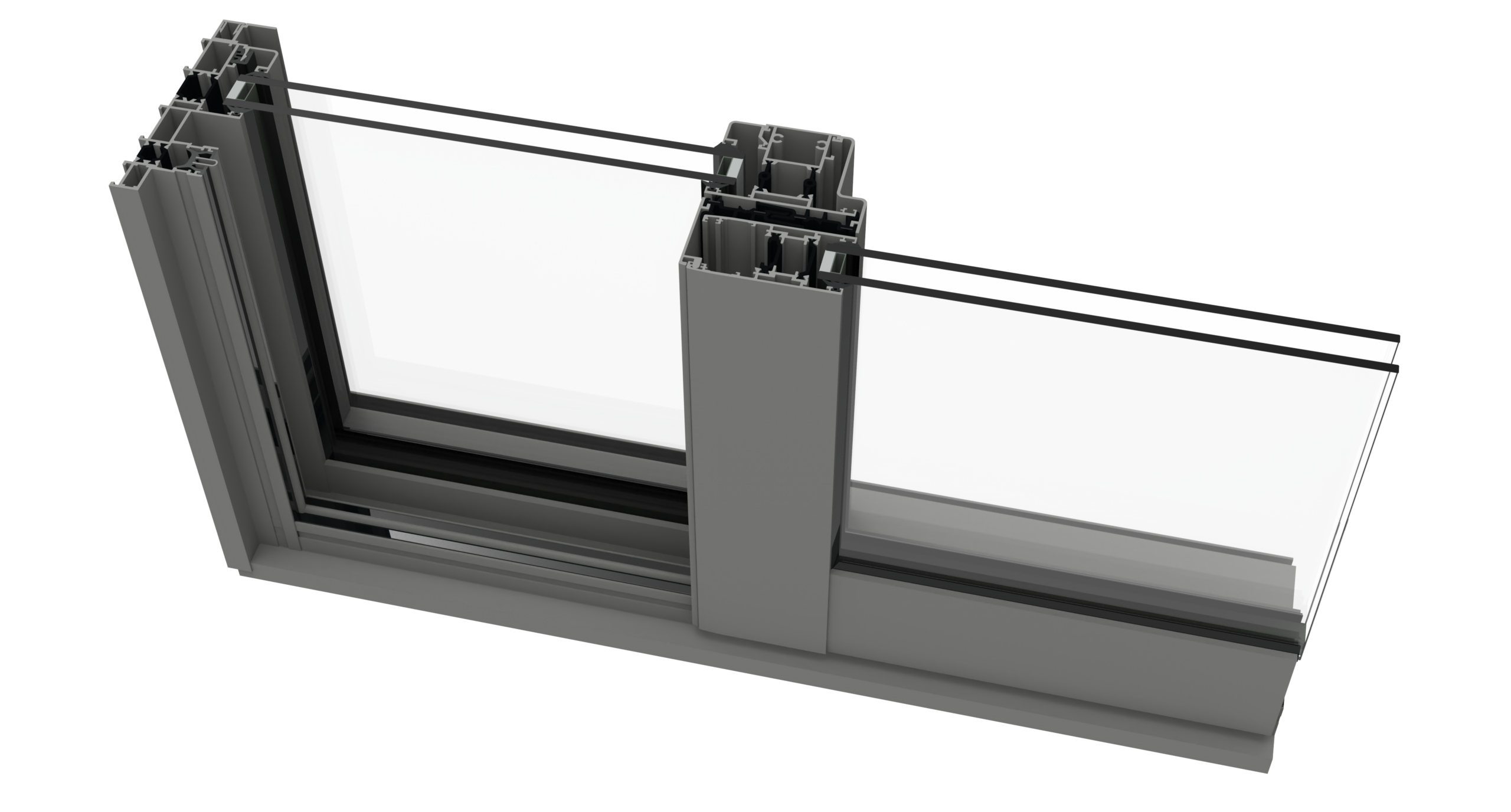

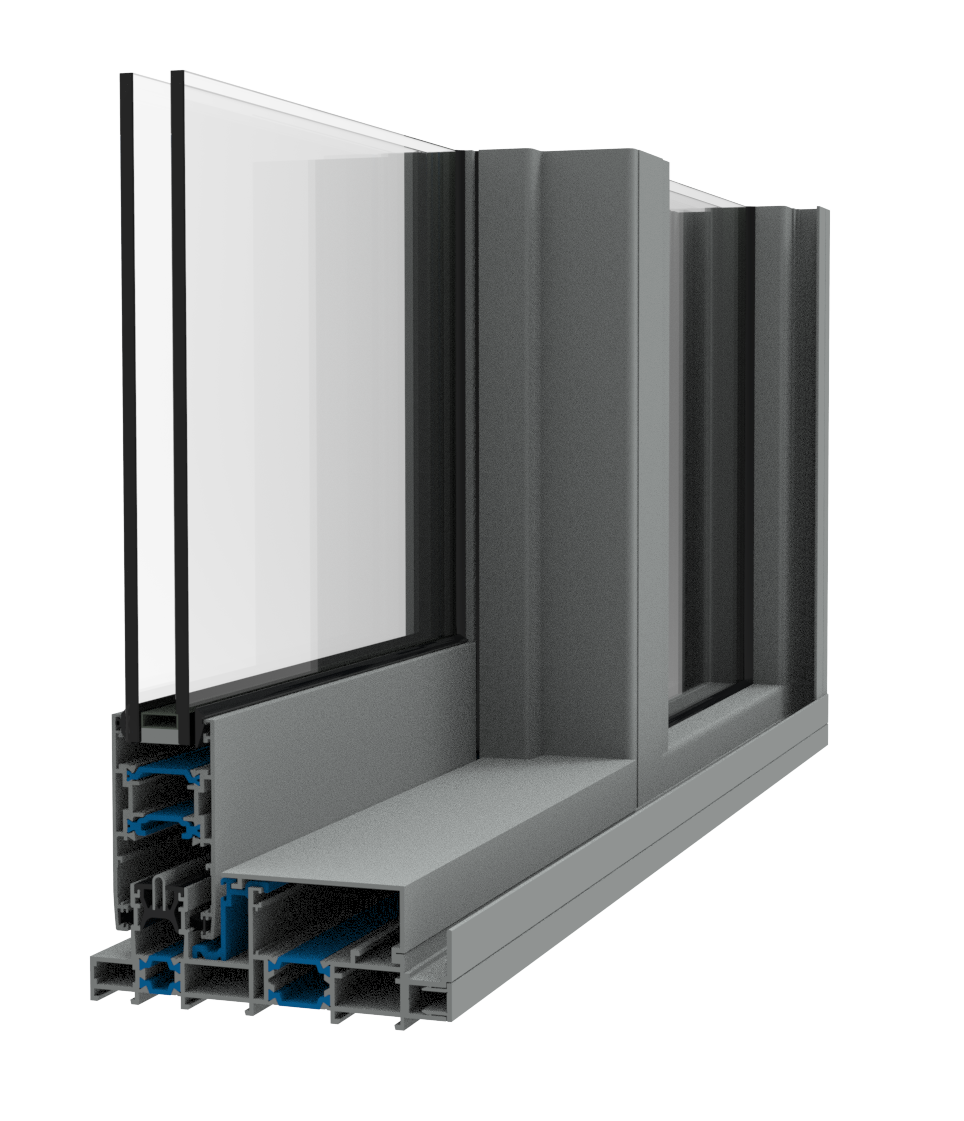

SLIDING DOOR SYSTEM Fixed/Sliding & Sliding/Sliding Doors
The system is designed to accommodate 28mm thick insulated glass units. The sliding panes are designed to be wrap-around glazed and the fixed frames are bead glazed directly into the outer frame. As with all Brital systems the sliding doors are manufactured to exacting standards, enabling economy to be combined with strength to give many years of aesthetic, troublefree operation.
DOWNLOAD AREA
Ask for more information
on this product
SIZE |
– Corners formed as 45 degree mitres to provide a quality appearance, high performance and weather resistance |
|---|---|
DESIGN |
– Corners formed as 45 degree mitres to provide a quality appearance, high performance and weather resistance. |
PERFORMANCE |
– The system offers high quality thermally broken sections to suit specific project requirements and reduce heat gain. |
INSTALLATION |
– Windows are hung on heavy duty fixed hinges with concealed multi-locking system for effective weather resistance and security. |
PRODUCT DETAILS
The basic suite of section has equal leg outer frame, in addition there are add-on sections to enable the system to be fitted into all type of structure, including all of the Brital curtain walling systems. The door system can be manufactured either as an in-line sliding door or as a lift & slide door, for applications requiring higher performance. The system is designed to accommodate 28mm thick insulated glass units. The sliding panes are designed to be wrap-around glazed and the fixed frames are bead glazed directly into the outer frame. As with all Brital systems the sliding doors are manufactured to exacting standards, enabling economy to be combined with strength to give many years of aesthetic, troublefree operation.
