NTB-84-SLIDE

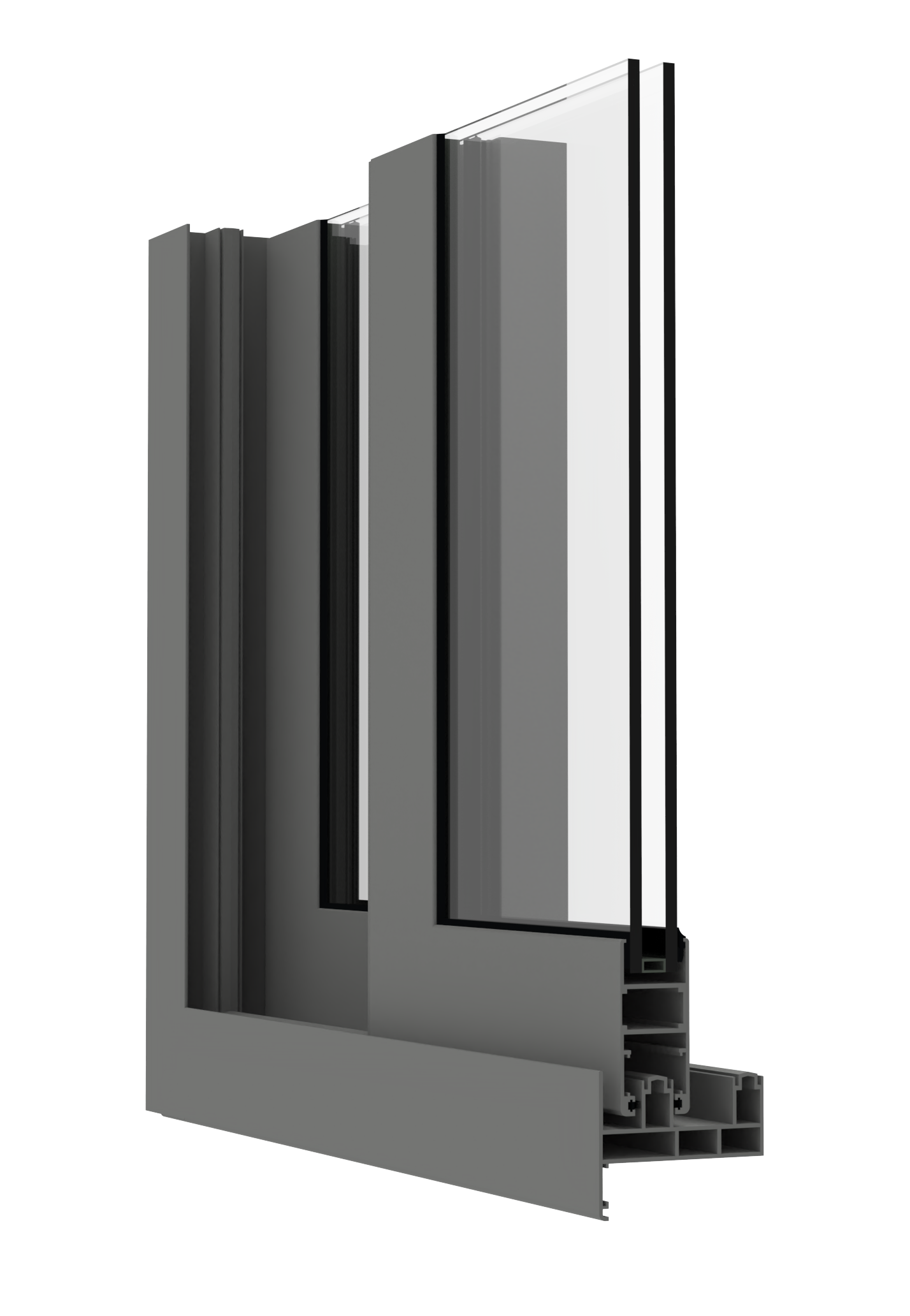

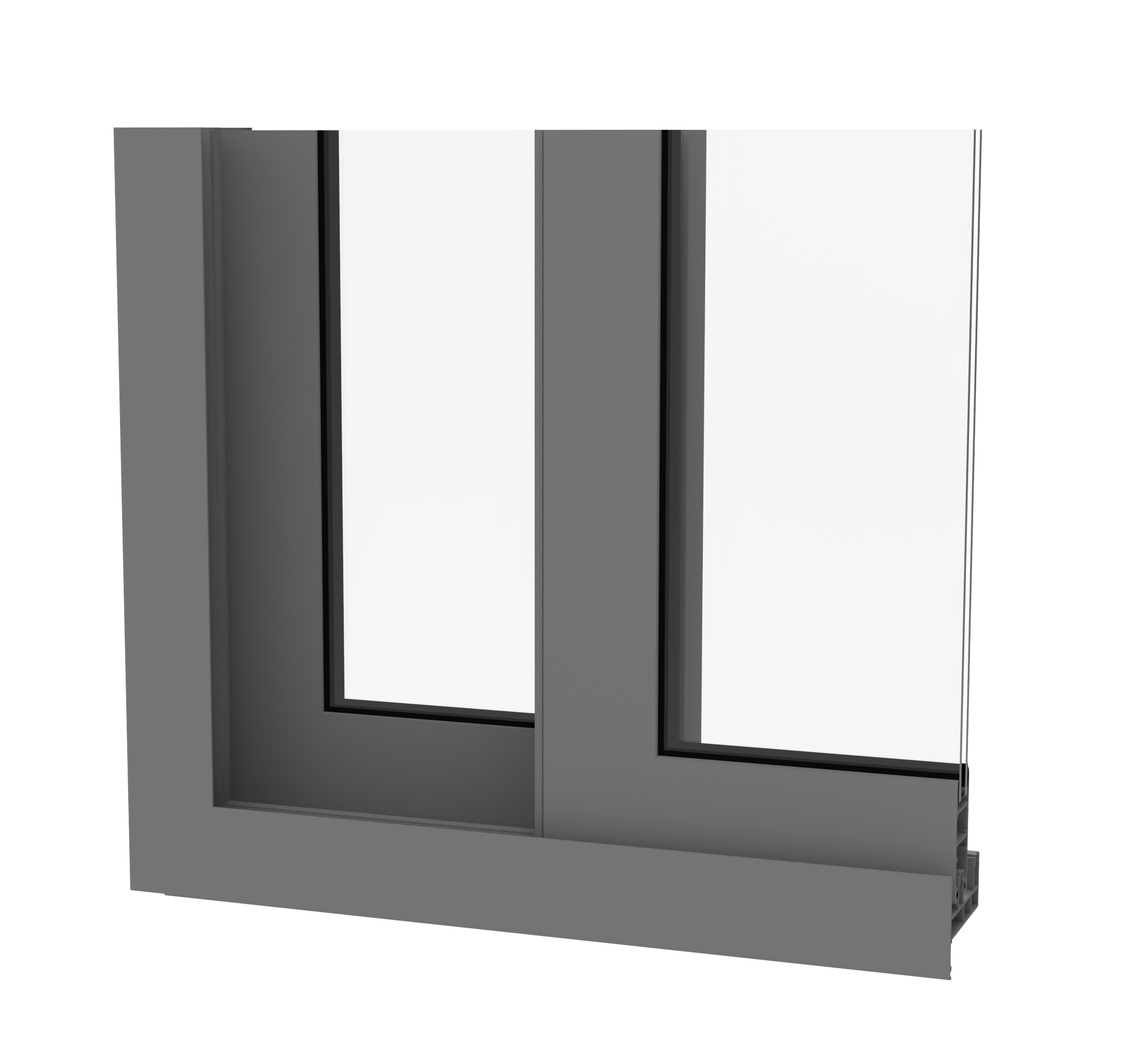

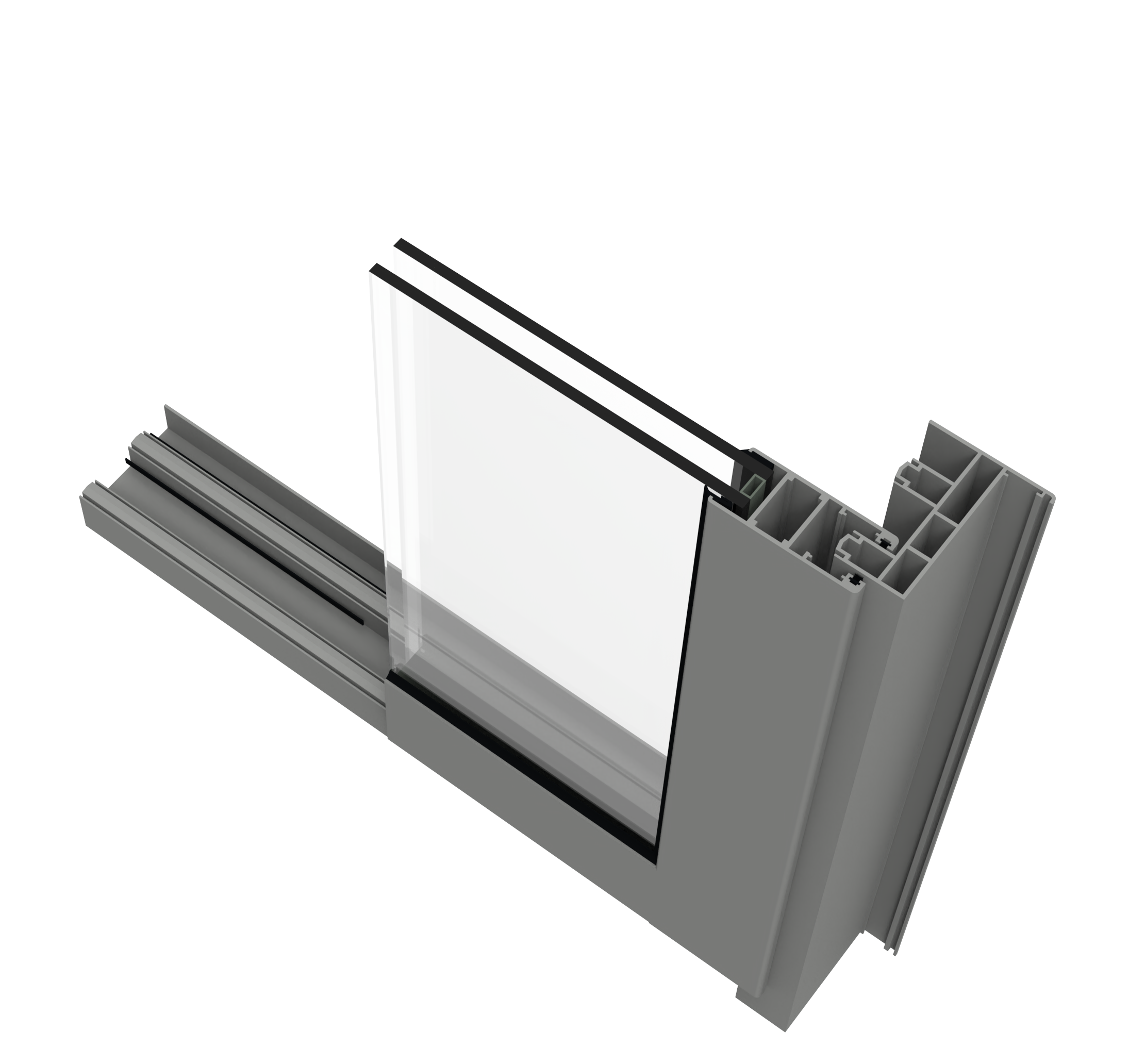

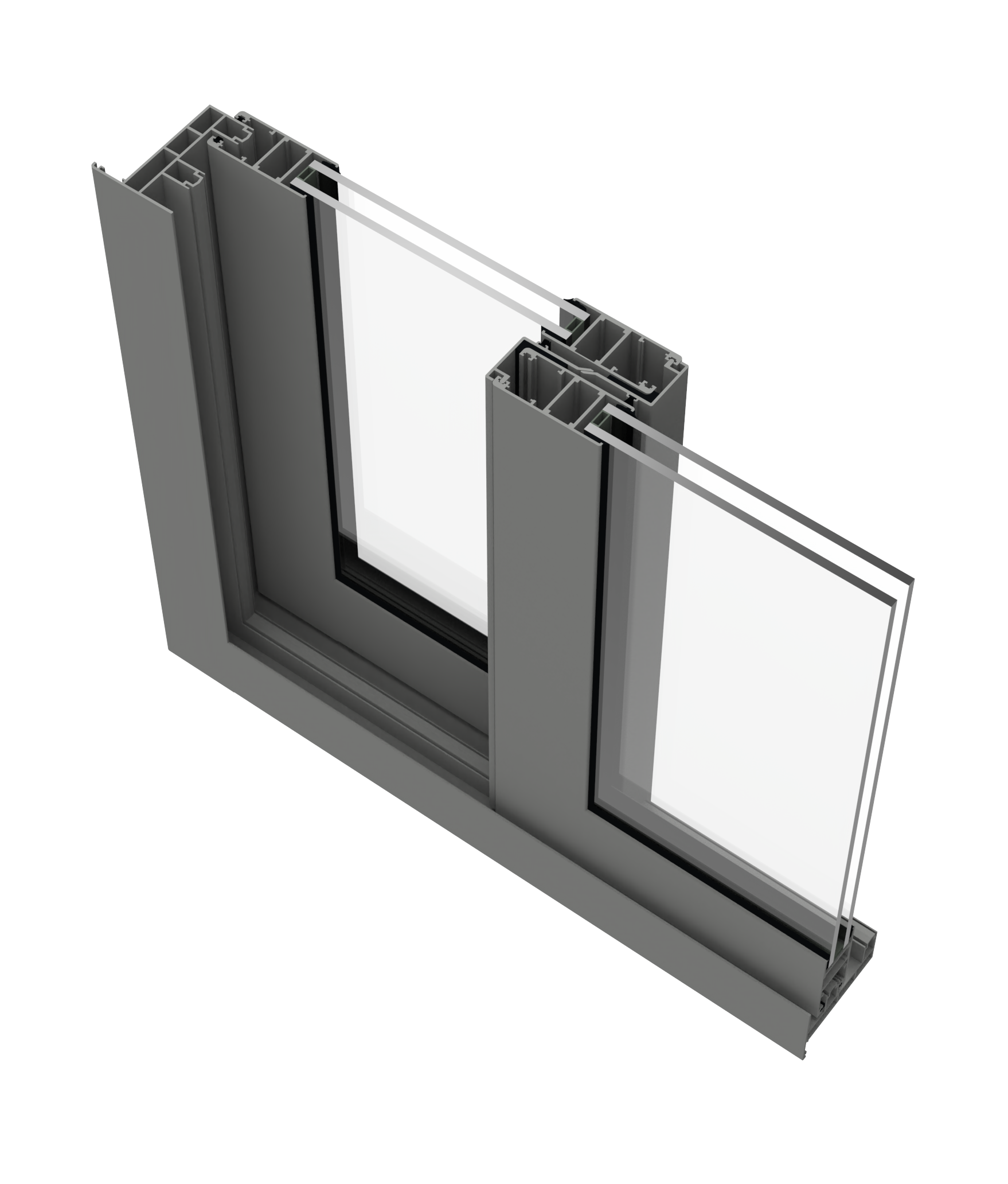

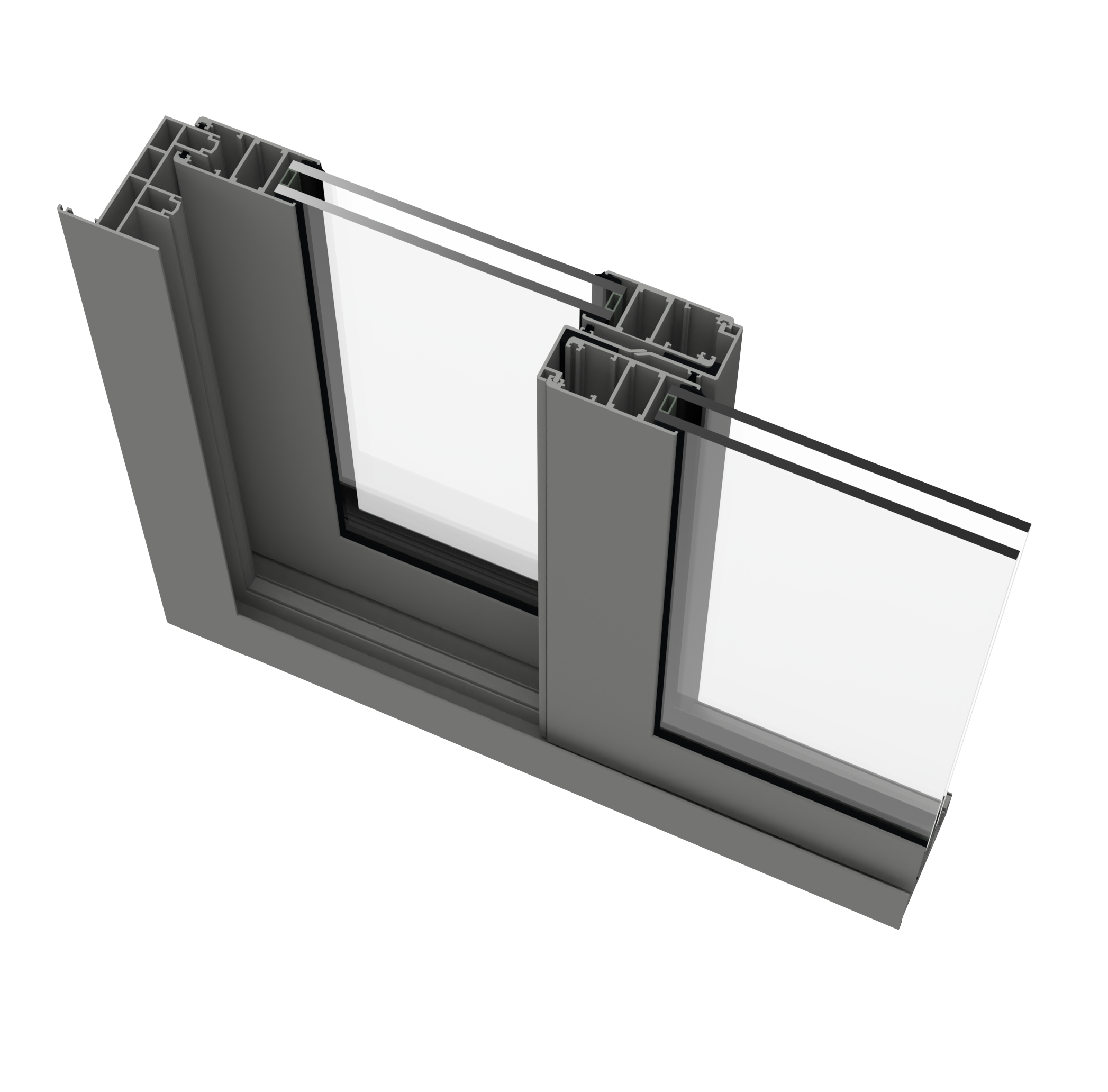

Slide horizontal sliding window system (thermally broken)

The system is designed to accommodate 24mm double glazed units, using non beaded or beaded sash and standard clip in glazing beads to fixed light windows. As with all Brital systems, the horizontal sliding/fixed light window system is manufactured to exacting standards, enabling economy to be combined with strength to give many years of aesthetic, trouble-free operation.


DOWNLOAD AREA


Ask for more information
on this product

SIZE

– Corners formed as 45 degree mitres to provide a quality appearance, high performance and weather resistance

DESIGN

– Economy is combined with strength to provide many years of trouble free operation and to be aesthetically pleasing.
– Designed to perform at wind resistances up to 1.5 kPa.

PERFORMANCE

– A non-thermal break system for use where high quality but economic construction is required.
– Opening panels fully weather-sealed with EPDM gaskets.

INSTALLATION

– Sliding panels run on stainless steel tracks for smooth operation and long service life.
– Thermal Break frameless outward opening vent panels can be incorporated.
– Neat fully sealed weather seal joints.

PRODUCT DETAILS

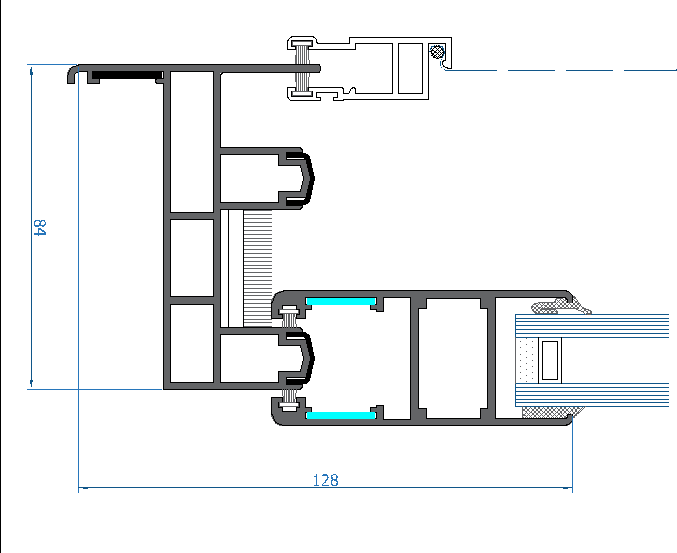

The basic suite has Iong leg outer frame section to allow the sliding and fixed light windows to be fitted at the back of the reveal. Various other profiles can be designed and incorporated allowing architects to achieve flexible designs. The system is designed to accommodate 24mm double glazed units, using non beaded or beaded sash and standard clip in glazing beads to fixed light windows. As with all Brital systems, the horizontal sliding/fixed light window system is manufactured to exacting standards, enabling economy to be combined with strength to give many years of aesthetic, trouble-free operation.
