HR-1-156

Handrails and Balustrades

The Brital aluminium handrail sections are from extruded aluminium and are available as either a one piece or two piece extruded section. The handrail sections are supported at the ends by means of circular stainless steel plates, which are screw fixed to the handrail and the adjacent structure. Intermediate fixing can be provided by posts (supplied by fabricators), which are fixed to the top of the concrete and then secured to the handrail via a purpose extruded plate.


DOWNLOAD AREA


Ask for more information
on this product

SIZE

– Corners formed as 45 degree mitres to provide a quality appearance, high performance and weather resistance

DESIGN

– Corners formed as 45 degree mitres to provide a quality appearance, high performance and weather resistance.
– Designed to perform at wind resistances up to 1.2 kPa.

PERFORMANCE

– The system offers high quality thermally broken sections to suit specific project requirements and reduce heat gain.
– Thermal performance can achieve Uw of 1.8 W/m2K.

INSTALLATION

– Windows are hung on heavy duty fixed hinges with concealed multi-locking system for effective weather resistance and security.

PRODUCT DETAILS

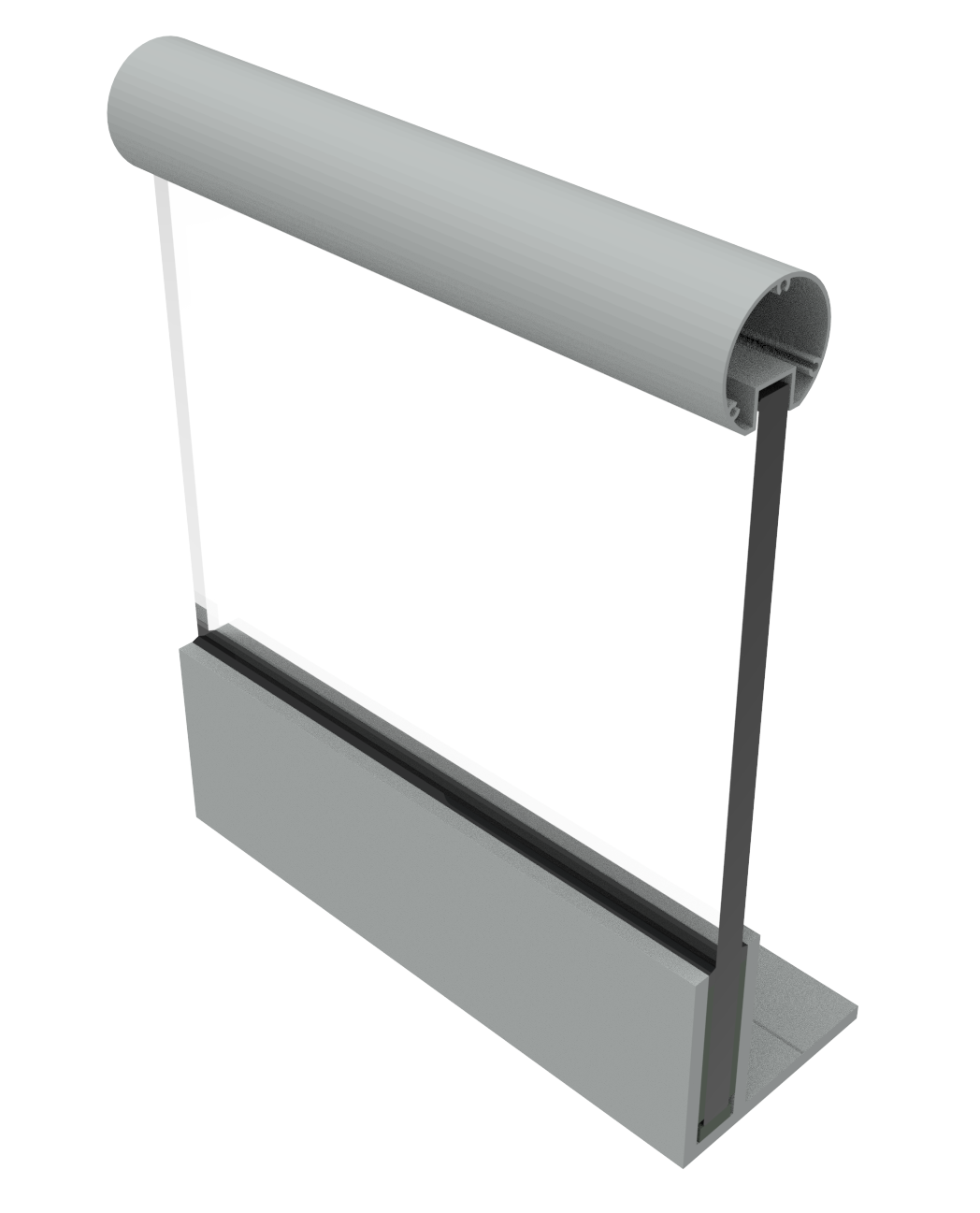

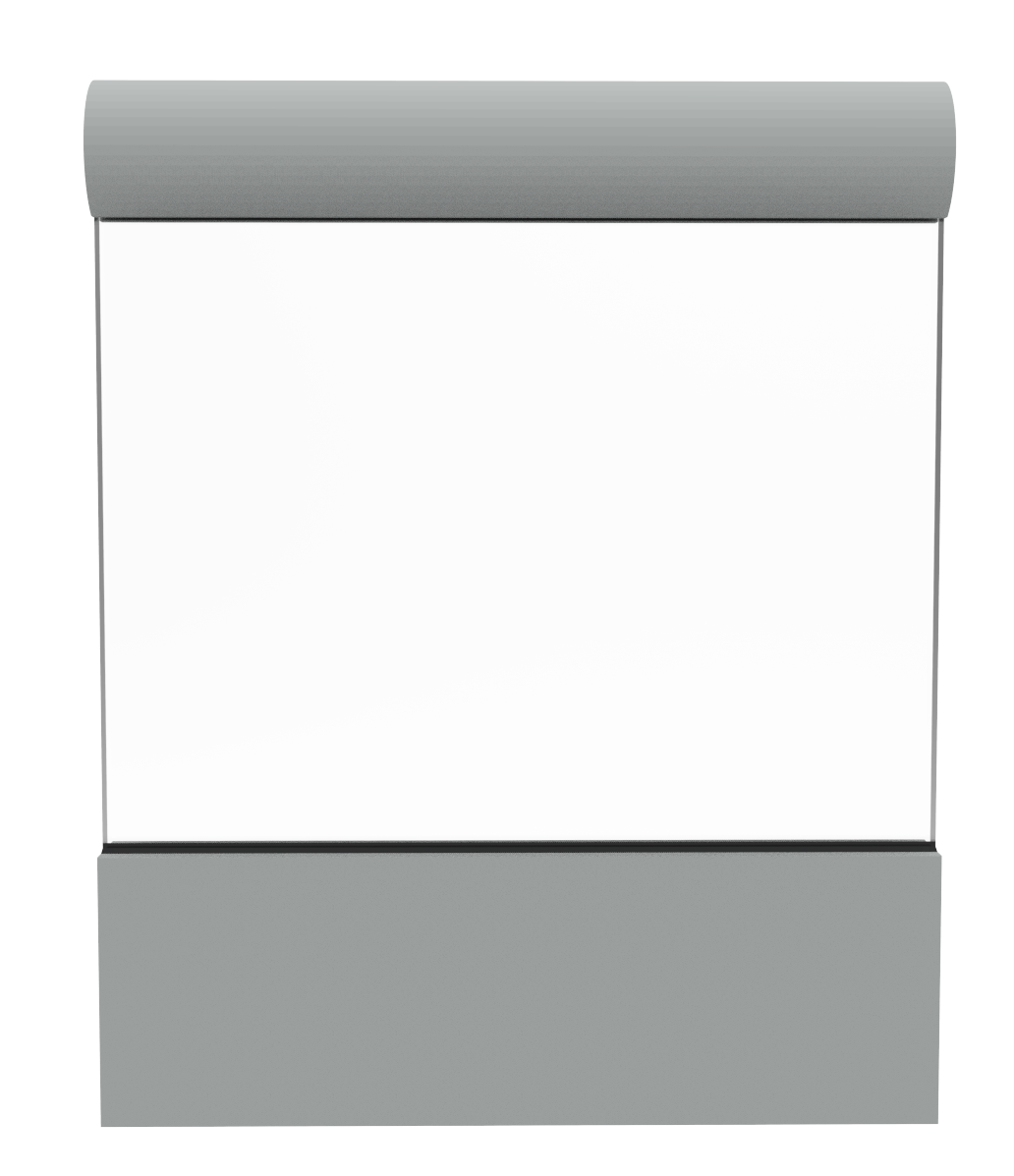

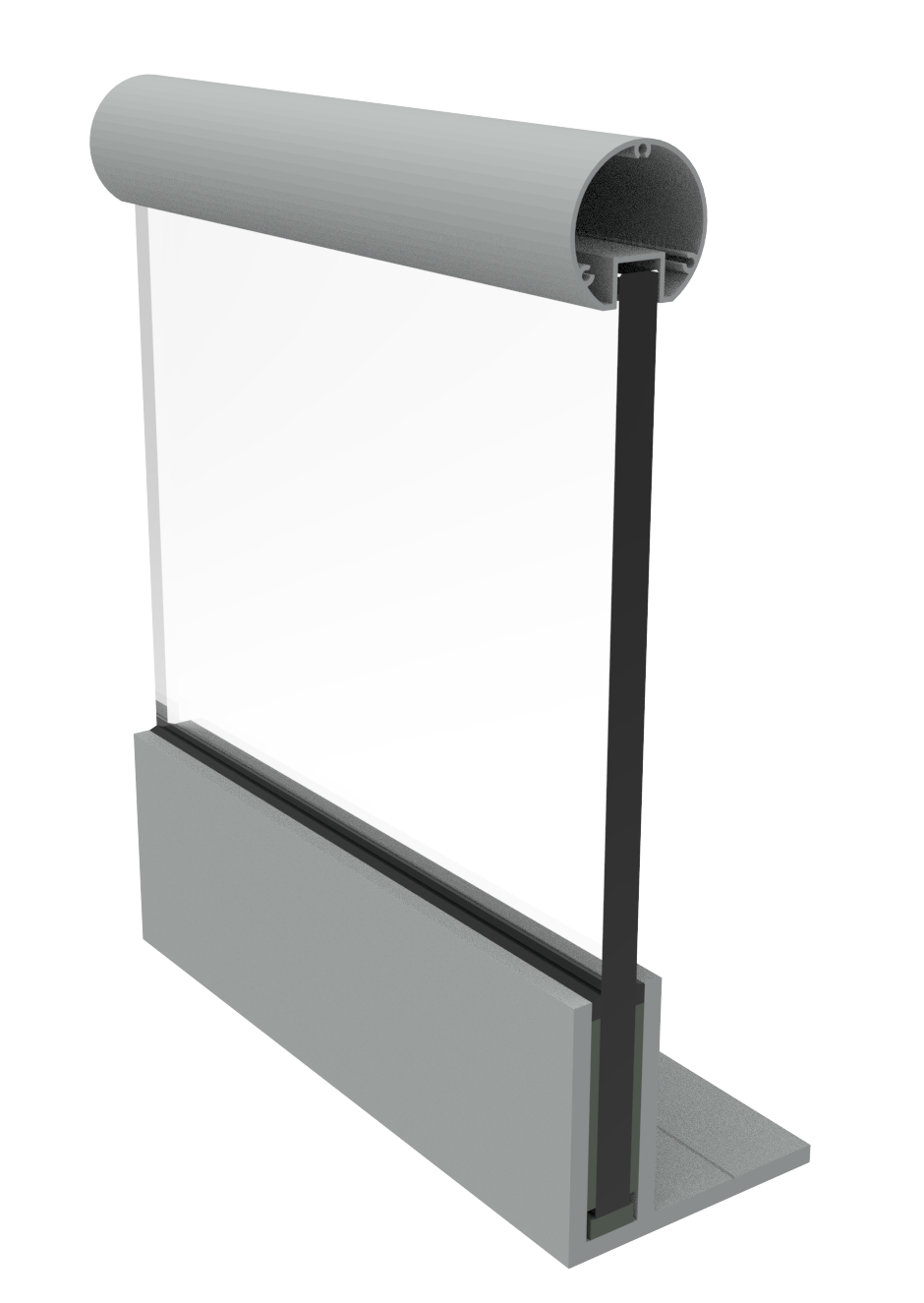

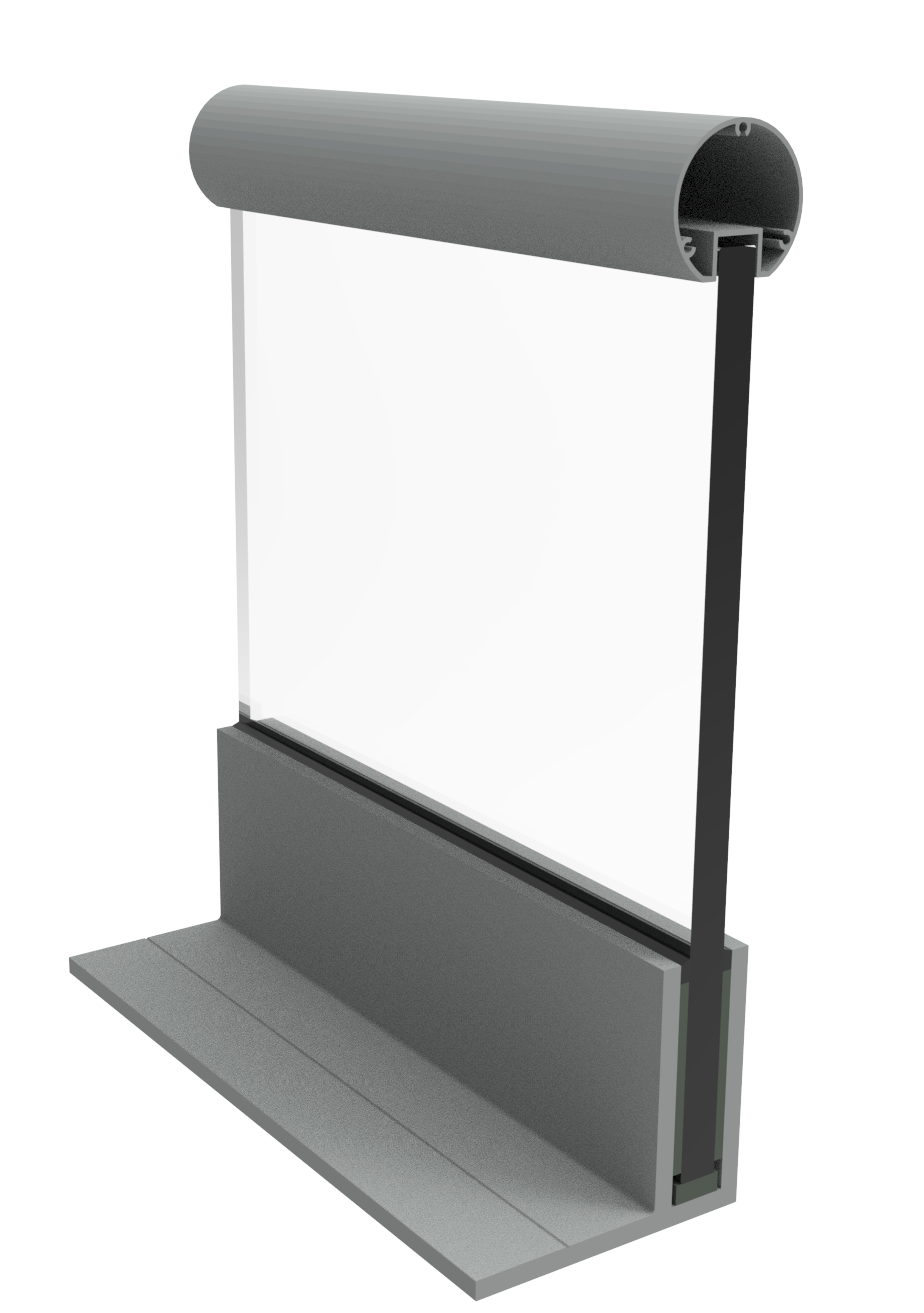

The Brital handrail/balustrade system is primarily designed for use with laminated glass infill to providee an architecturally light but robust blaustrade system. The Brital aluminium handrail sections are from extruded aluminium and are available as either a one piece or two piece extruded section. The cill channel section is formed from a robust extruded aluminium channel section, which can be either cast into the concrete or screw fixed onto the top surface of the concrete. The handrail sections are supported at the ends by means of circular stainless steel plates, which are screw fixed to the handrail and the adjacent structure. Intermediate fixing can be provided by posts (supplied by fabricators), which are fixed to the top of the concrete and then secured to the handrail via a purpose extruded plate.
