TB-68-DOOR

Door open-in and out door systems (thermally broken)

The system is glazed internally to accommodate a range of double glazed units, using standard beads. As with all Brital systems, the Door system is manufactured to exacting standards enabling economy to be combined with strength to give many years of aesthetic, trouble-free operation.


DOWNLOAD AREA


Ask for more information
on this product

SIZE

– Corners formed as 45 degree mitres to provide a quality appearance, high performance and weather resistance

DESIGN

– Corners formed as 45 degree mitres to provide a quality appearance, high performance and weather resistance.
– Designed to perform at wind resistances up to 1.2 kPa.

PERFORMANCE

– The system offers high quality thermally broken sections to suit specific project requirements and reduce heat gain.
– Thermal performance can achieve Uw of 1.8 W/m2K.

INSTALLATION

– Windows are hung on heavy duty fixed hinges with concealed multi-locking system for effective weather resistance and security.

PRODUCT DETAILS

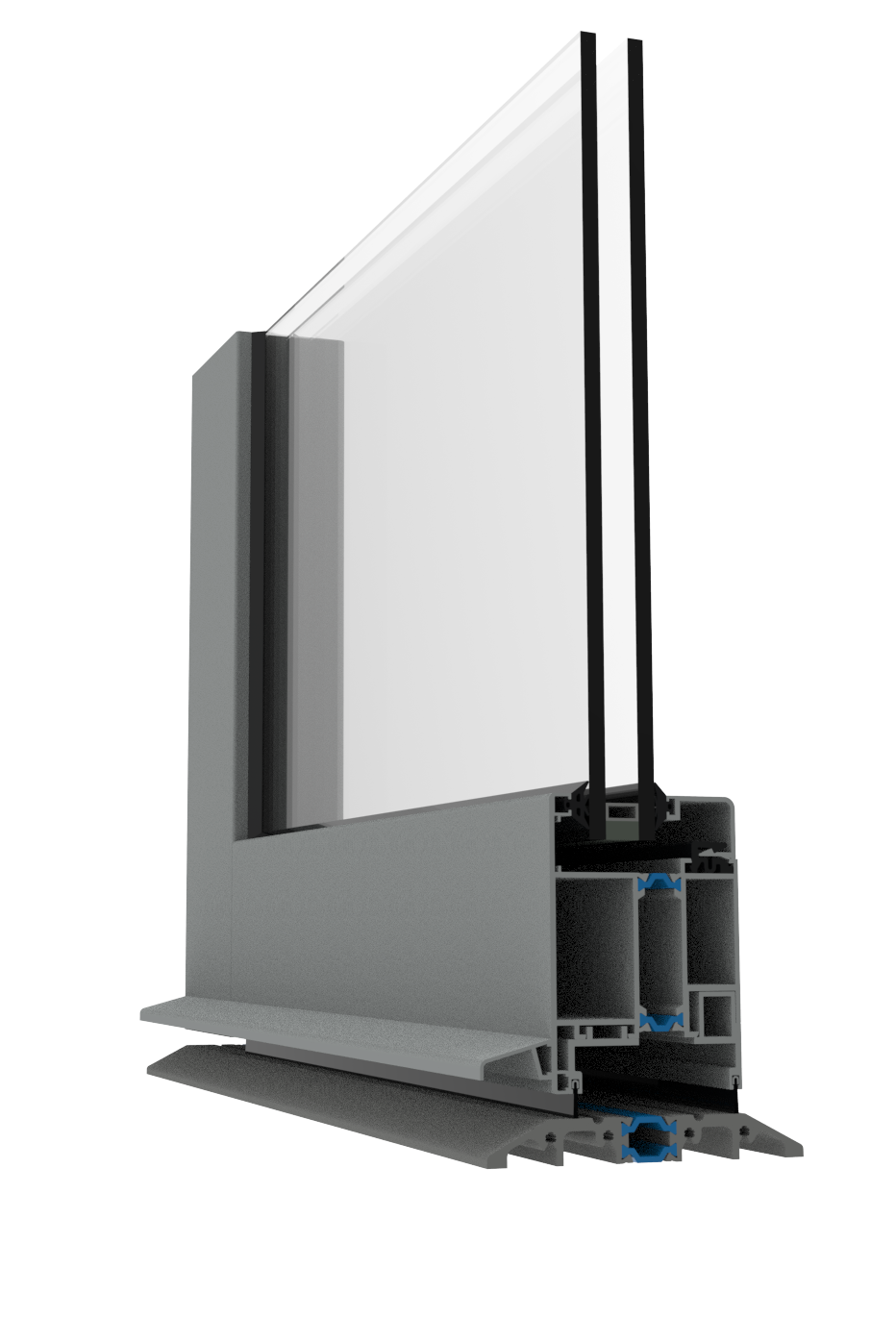

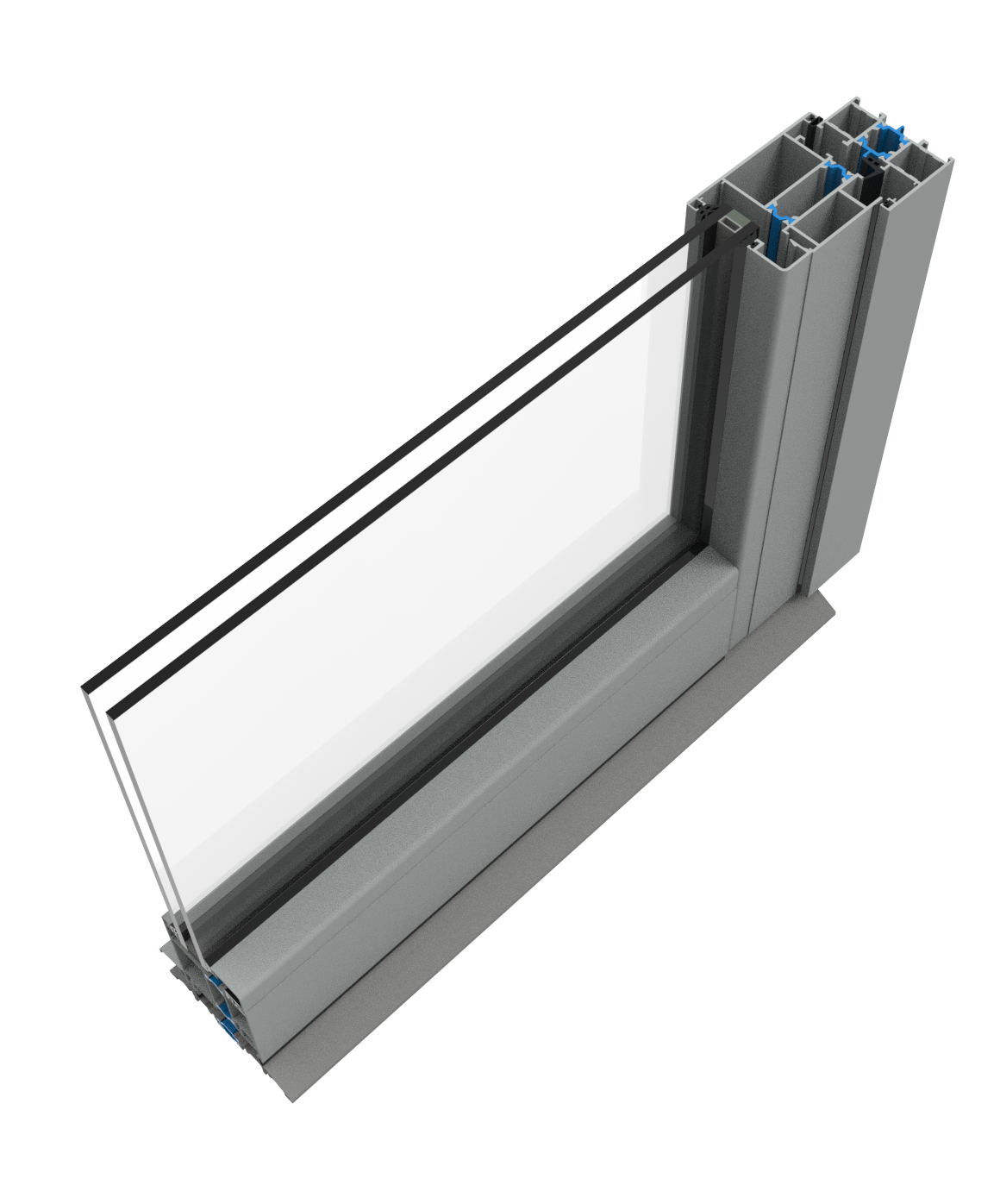

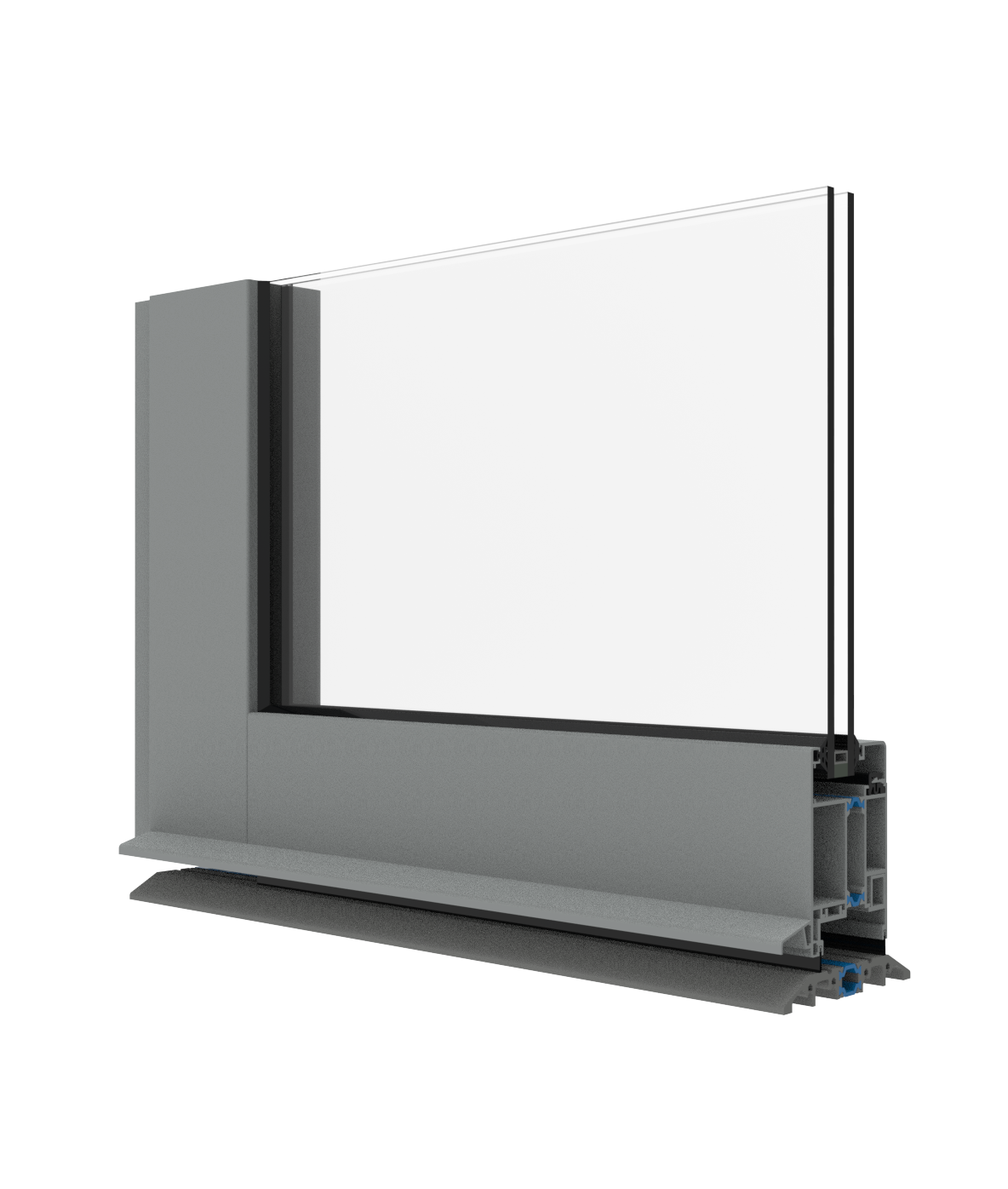

The basic suite has equal leg outer frame section and an internal trim to allow the doors to be fitted against the internal reveal if required. Also included in the basic suite of profiles are a range of vent and mullion / transoms / mid-rail sections. Various other profiles can be designed and incorporated allowing architects to achieve flexible designs. The system is glazed internally to accommodate 24mm or 26mm double glazed units, using standard beads. As with all Brital systems, the Door system is manufactured to exacting standards enabling economy to be combined with strength to give many years of aesthetic, trouble-free operation.
