TB-68-CASE

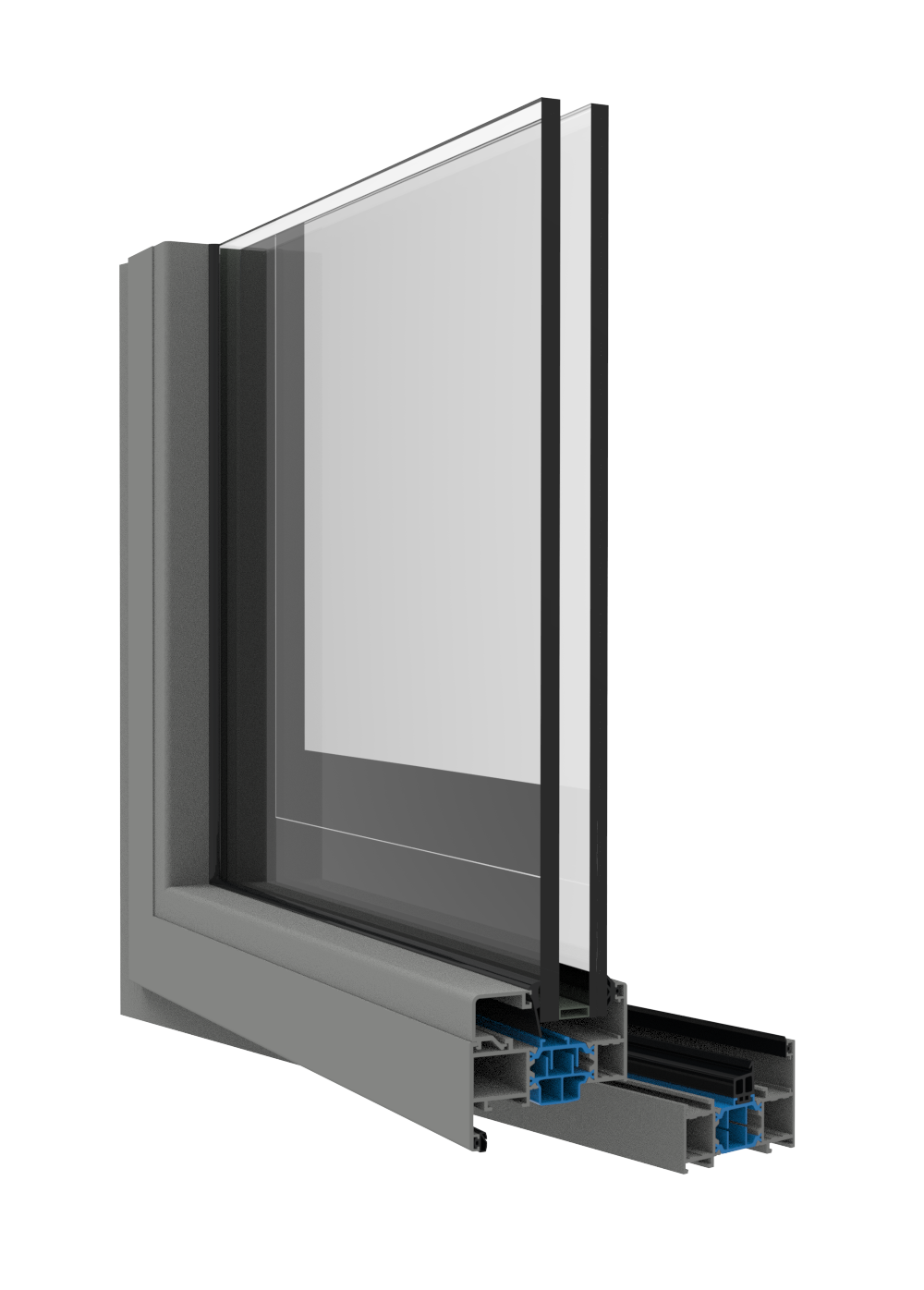

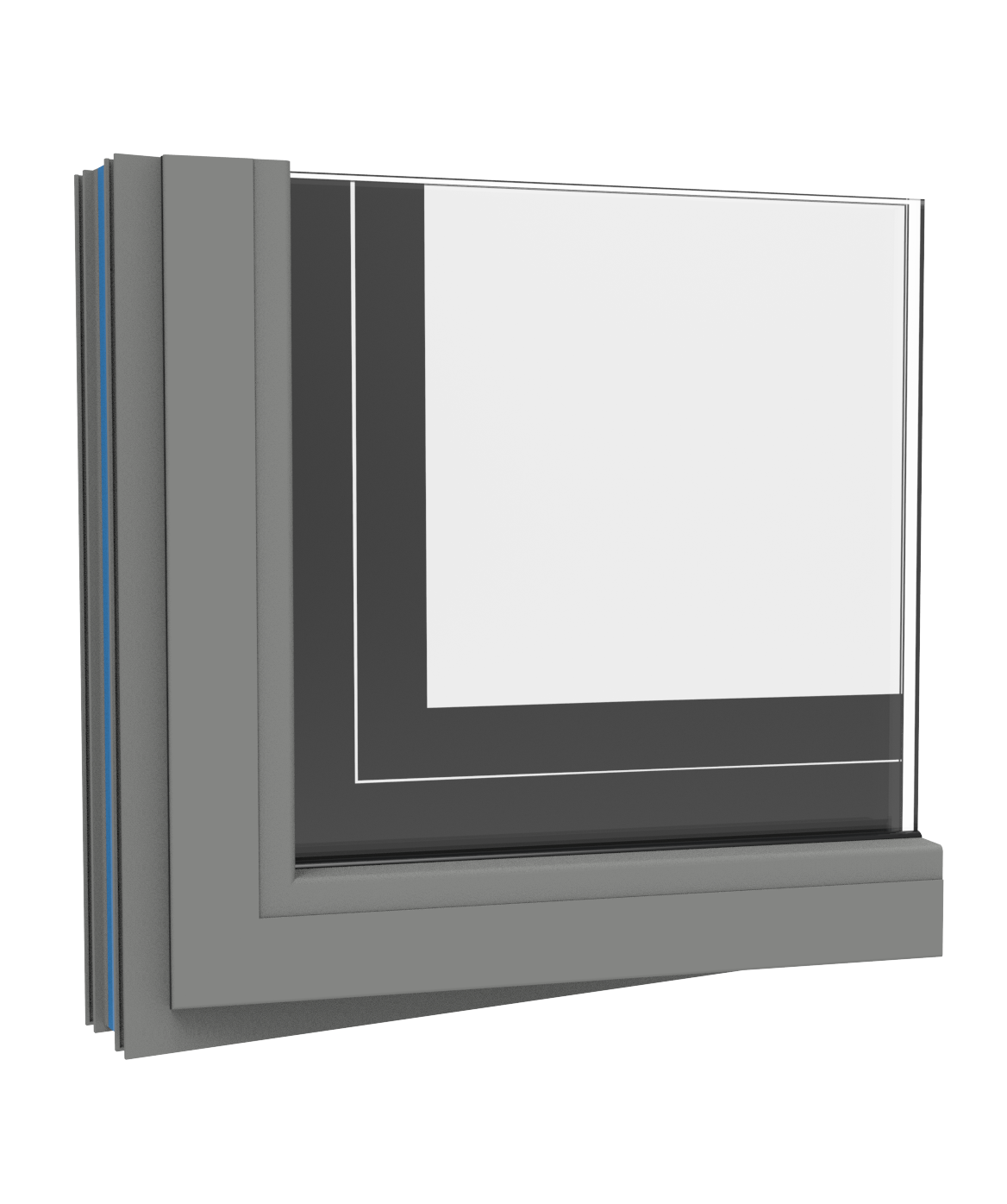

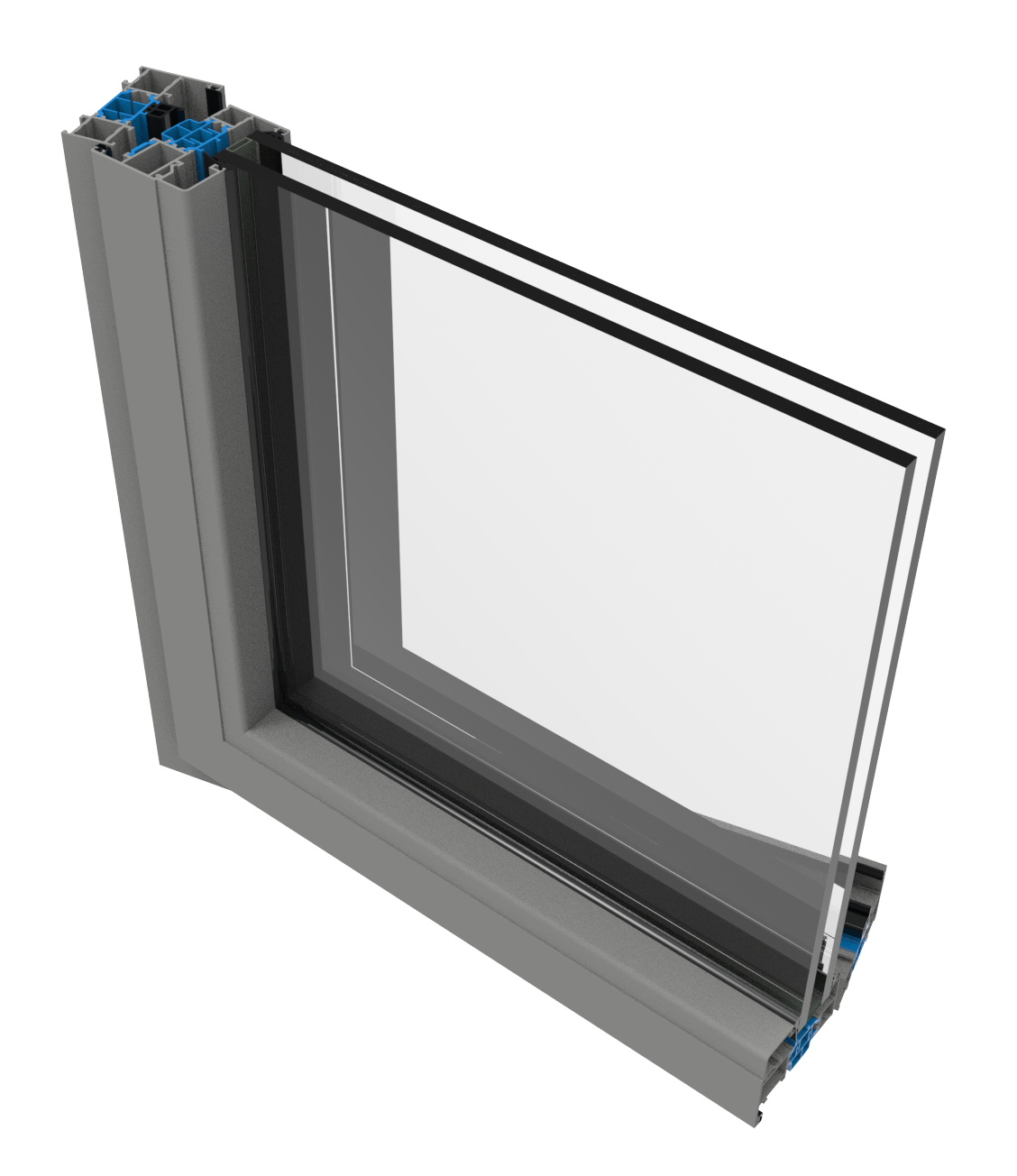

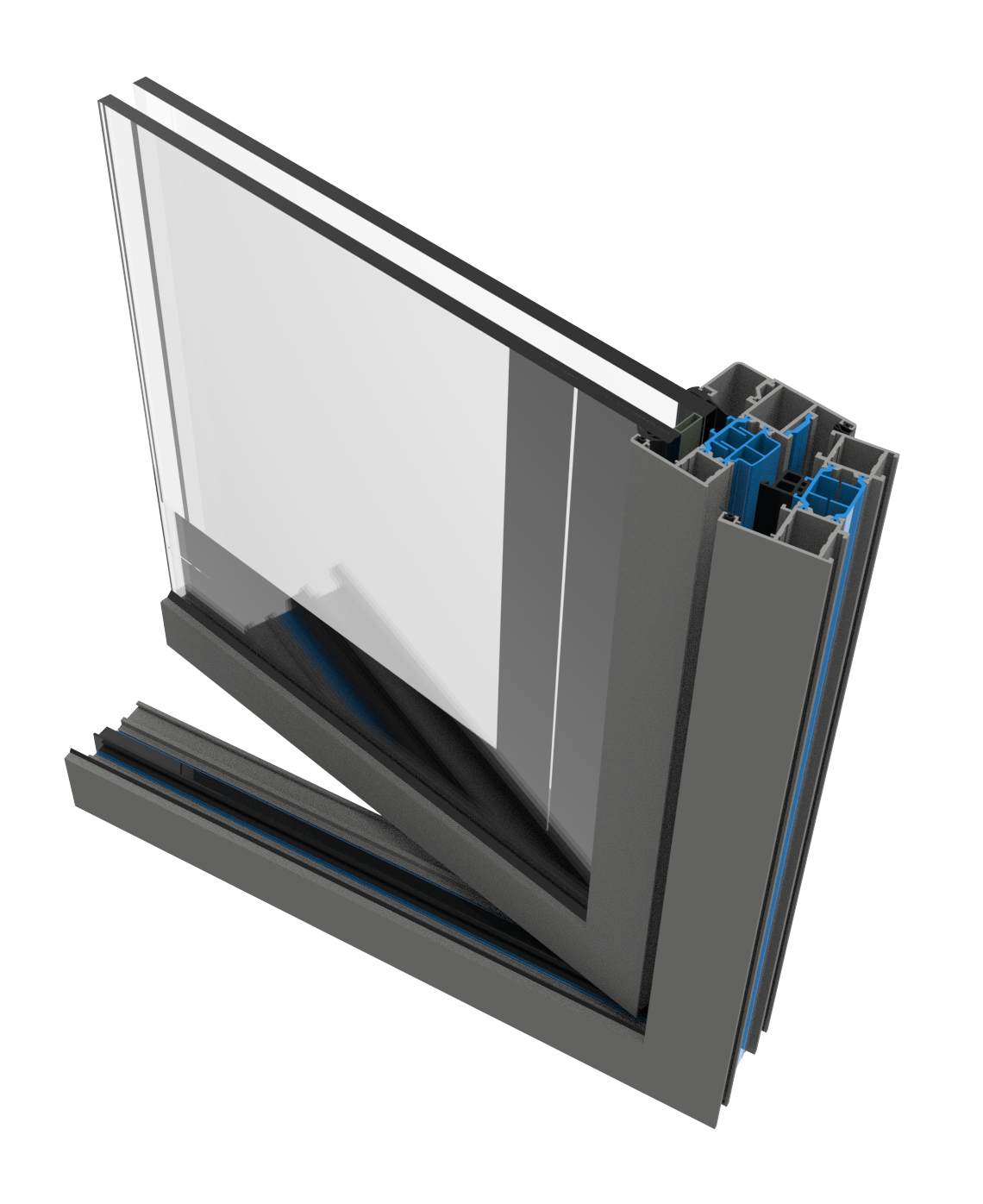

Case tilt & turn window system (thermally broken)

The system is glazed internally to acommodate 24mm or 26mm double glazed units, using standard beads. As with all Brital systems, the Tilt & Turn window system is manufactured to exacting standards enabling economy to Le combined with strength to give many years of aesthetic trouble-free operation.

DOWNLOAD AREA

Ask for more information
on this product

catalogue overview
SIZE

– Corners formed as 45 degree mitres to provide a
quality appearance, high performance and weather
resistance
DESIGN

– Economy is combined with strength to provide many
years of trouble free operation and to be aesthetically
pleasing.
– Designed to perform at wind resistances up to 2.4 kPa.
PERFORMANCE

– Thermal performance can achieve Uw of 1.6 W/m2K.
– Opening panels fully weather-sealed with EPDM gaskets.
INSTALLATION

– Accommodates various thicknesses of single and
double glazed units.
– Thermal Break frameless outward opening vent panels
can be incorporated.
– Neat fully sealed weather seal joints.
PRODUCT DETAILS

The Basic suite has long leg opter frame section to allow the window to be fitted at the back of the reveal. Also included in the basic suite of profiles are a range of vent and mullion/transom sections. Various other profiles can be designed and incorporated allowing architects to achieve flexible deisgns. The system is glazed internally to acommodate 24mm or 26mm double glazed units, using standard beads. As with all Brital systems, the Tilt & Turn window system is manufactured to exacting standards enabling economy to Le combined with strength to give many years of aesthetic trouble-free operation.
