UN-4-76-SGEP

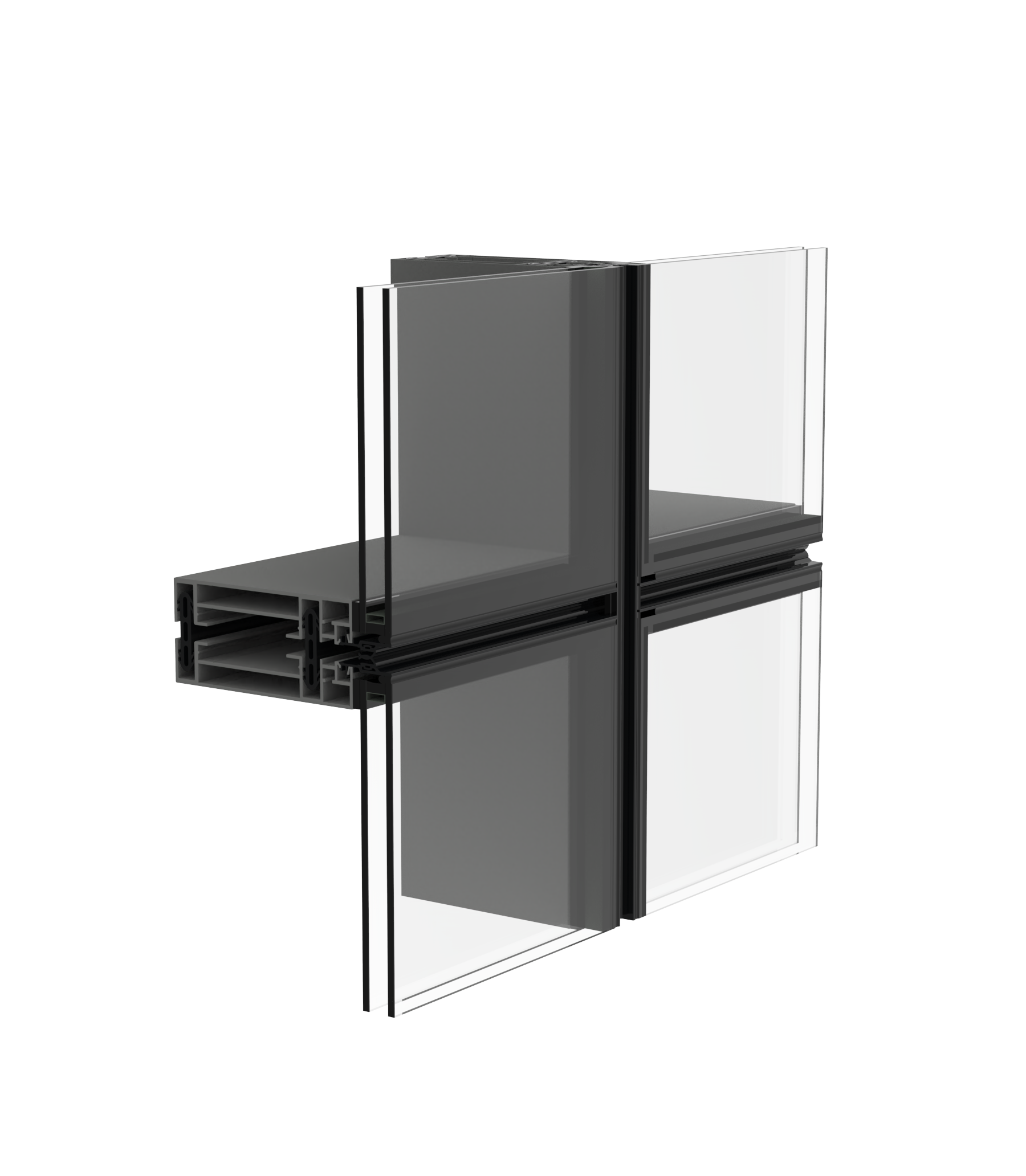

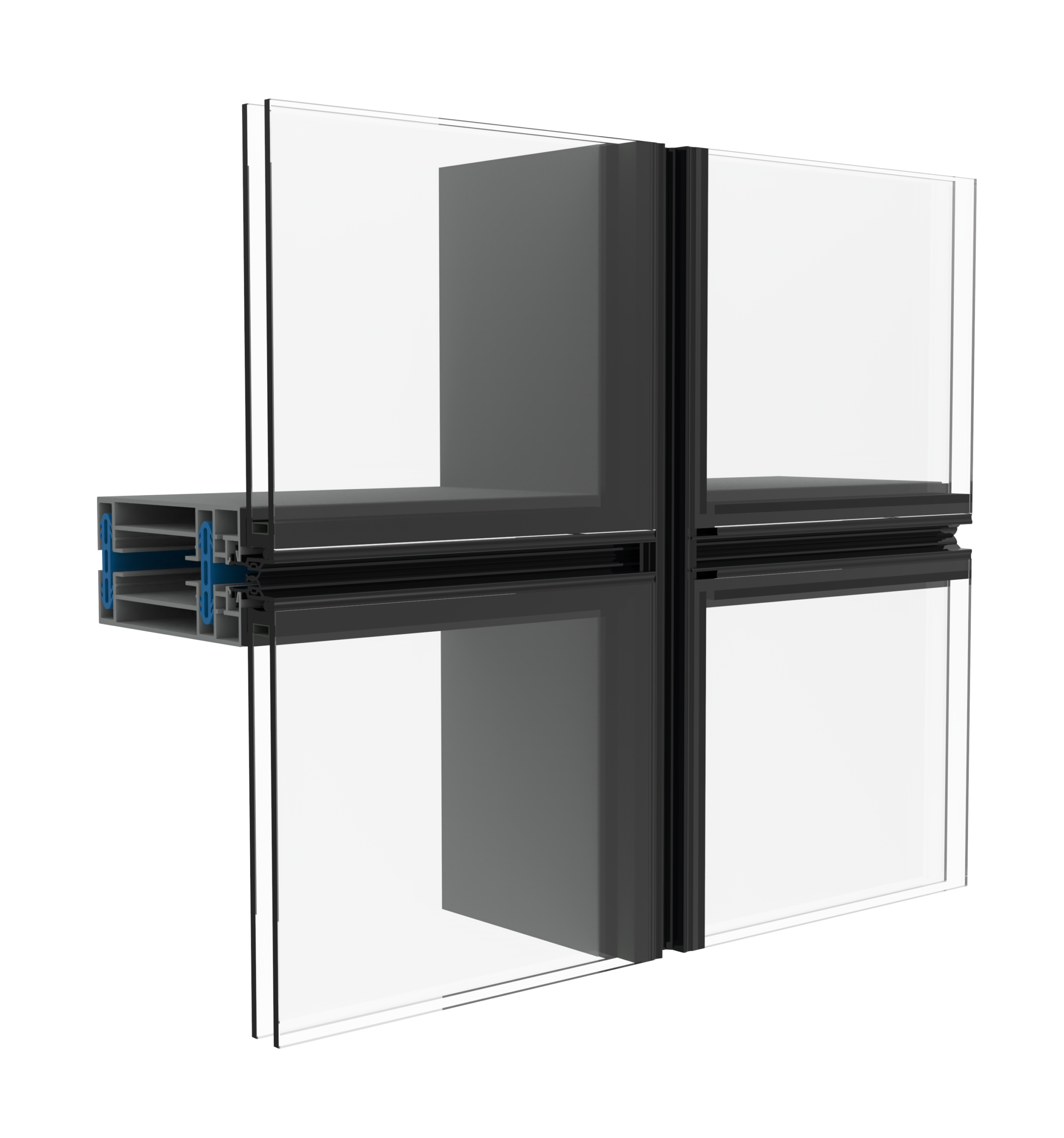

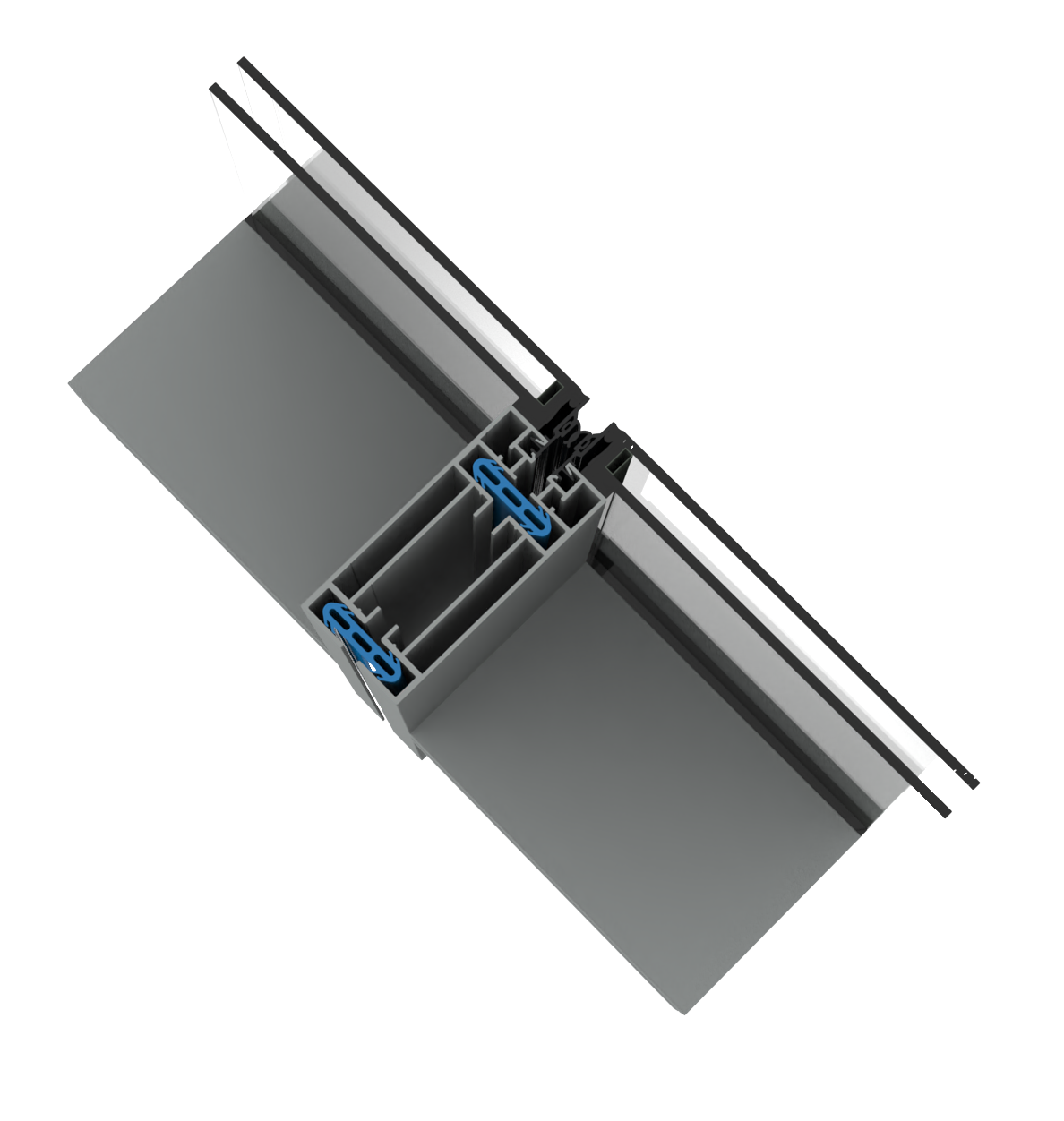

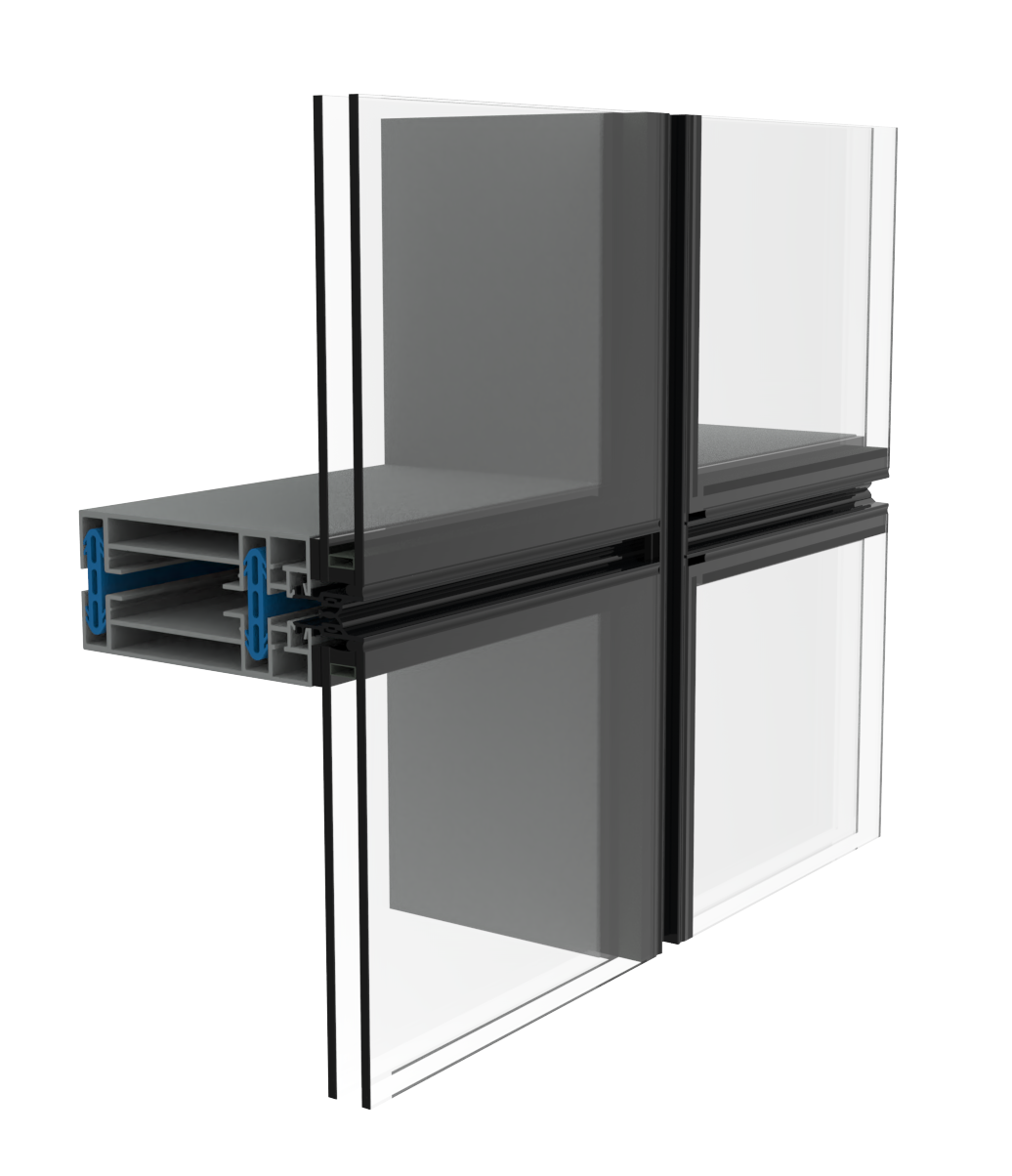

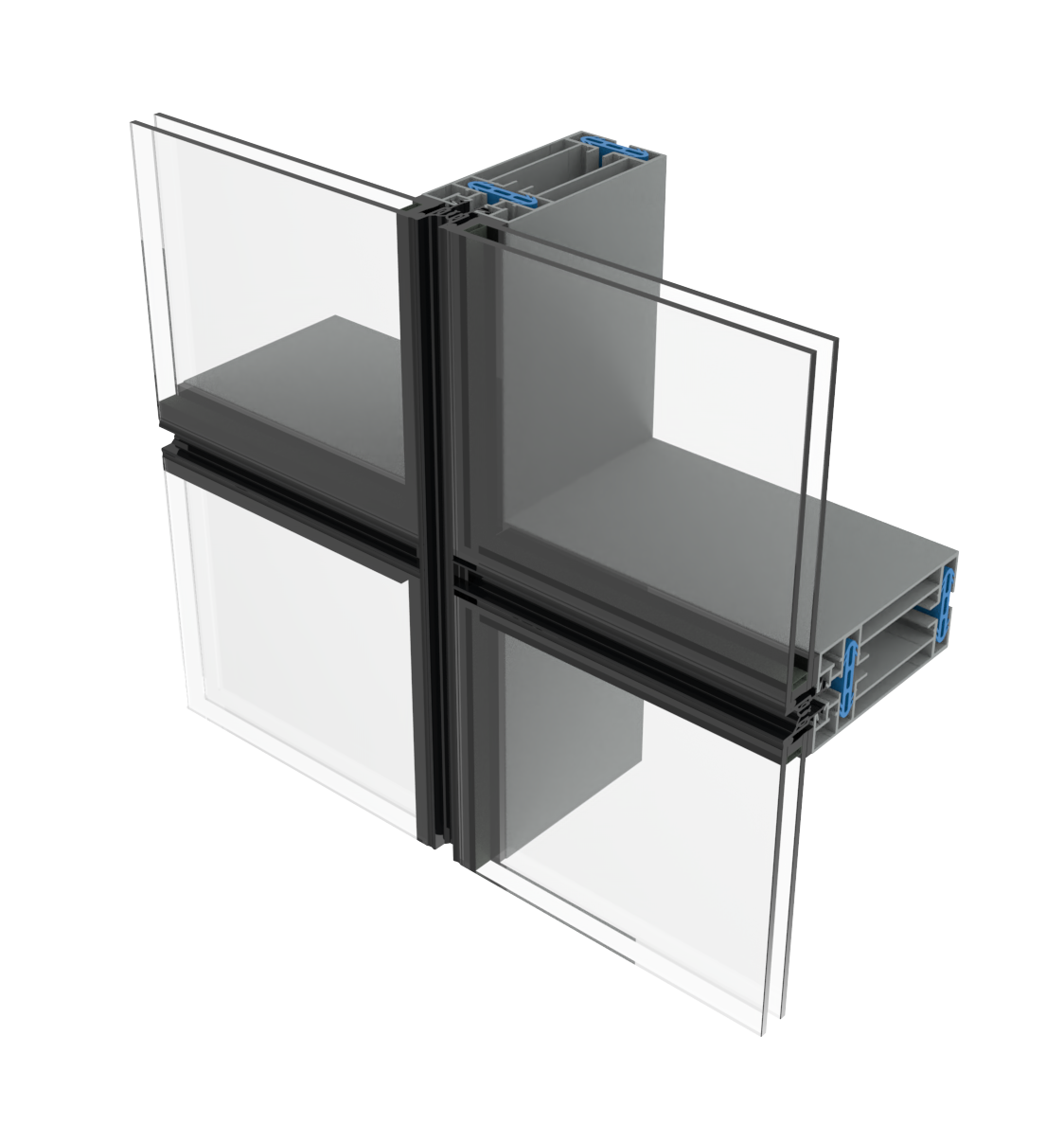

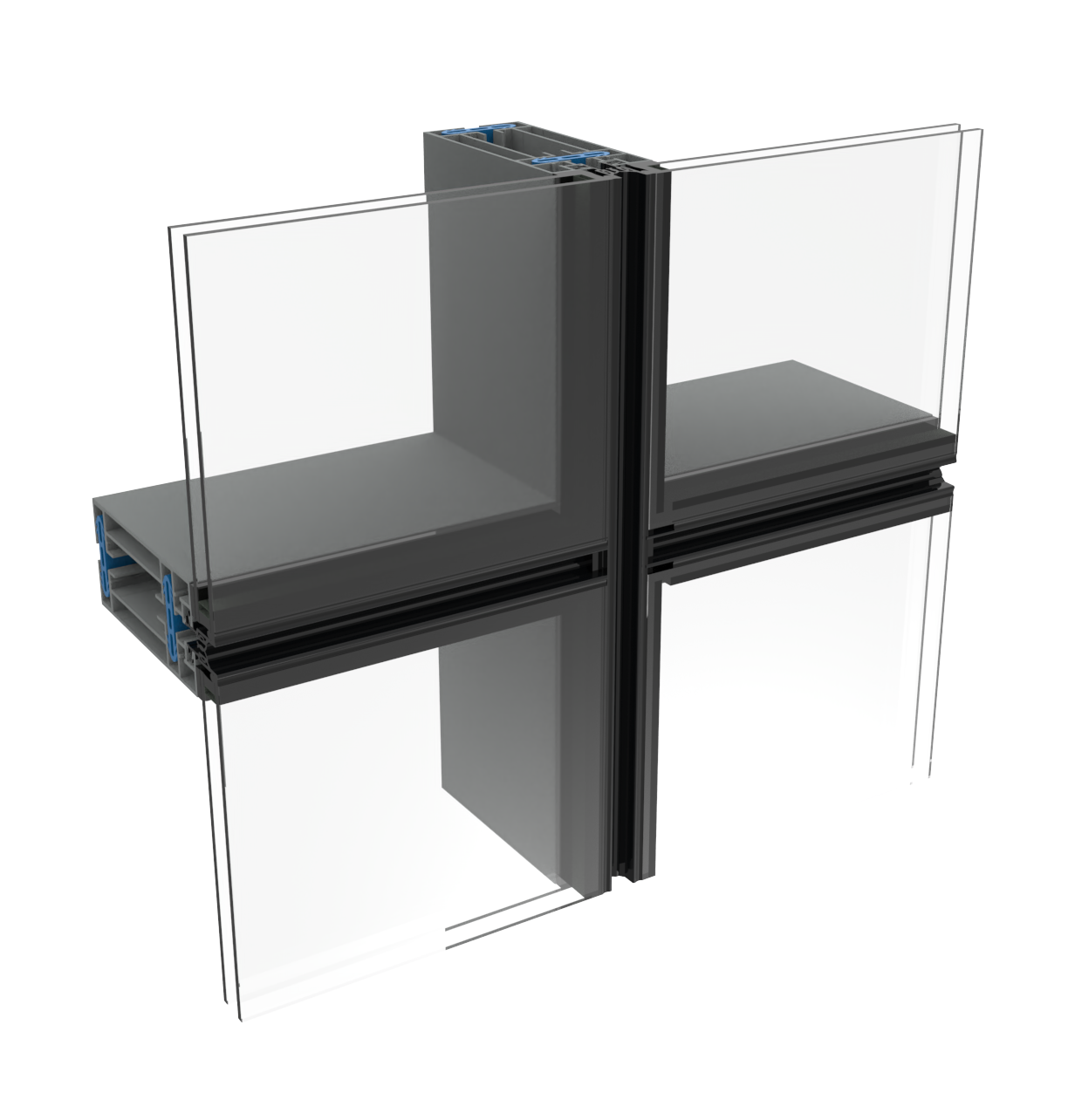

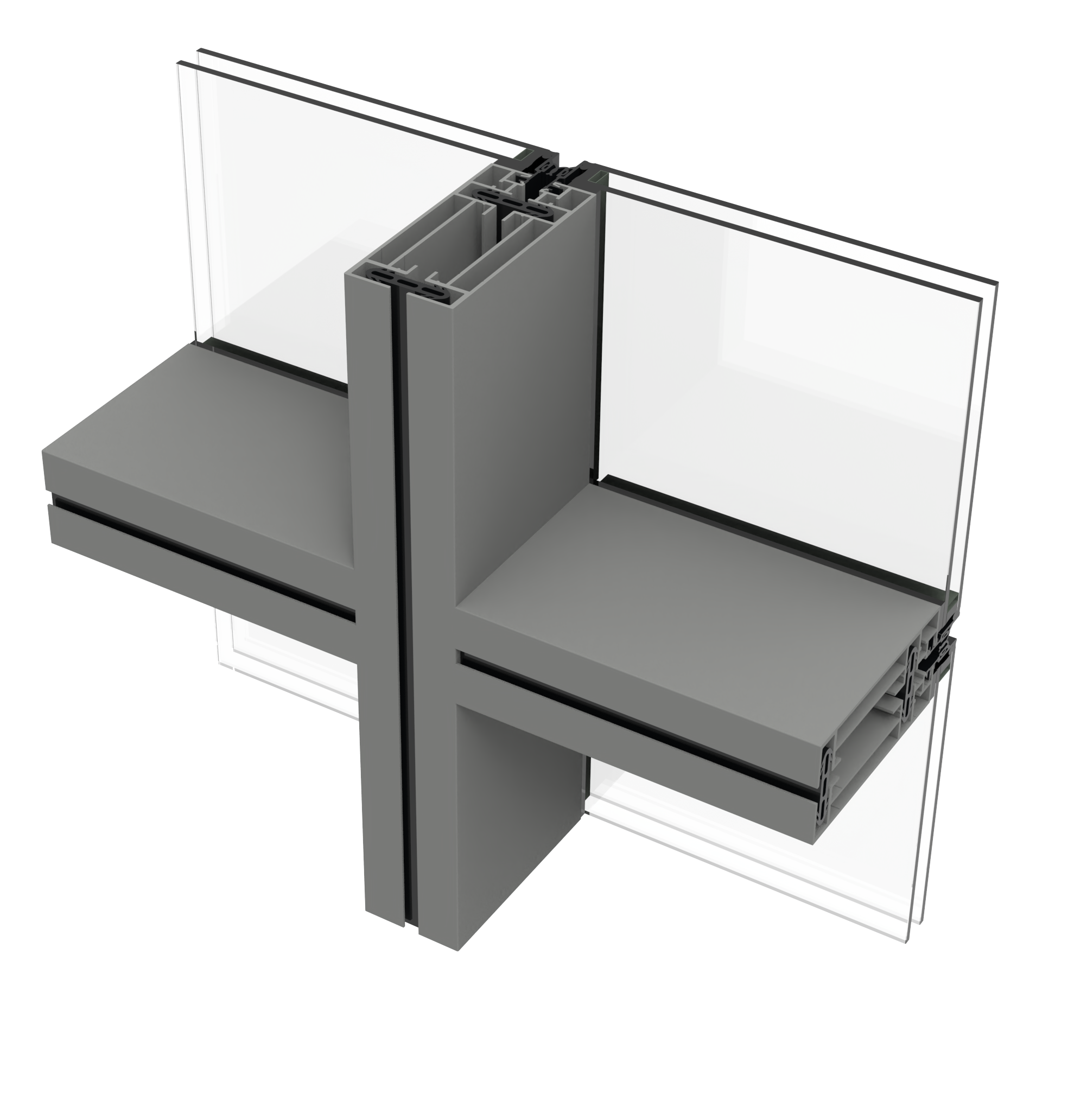

4 Sided Unitised Structural Glazed Curtain Walling System

The system currently offers frames for three types of glazed units, a 28 to 38mm thick double glazed fixed light unit, a 6mm single glazed spandrel panel and a 28 or 36mm double glazed top hung casement. Fixed double glazing incorporates flush edged double glazing units whilst the top hung windows utilise glazing units that have stepped edges to enable clean and continuous sight lines whilst providing high levels of performance. All low all double glazed units must be dual sealed with a P.I.B. primary seal and a silicone secondary seal suitable for units being placed in SSG applications.

DOWNLOAD AREA

Ask for more information
on this product

catalogue overview
SIZE

– Total frame profile widths only 76mm.
– Profile depths vary according to project requirements,
such as 127mm or 161.5mm.
DESIGN

– Designed specifically for the Gulf climatic conditions.
– Designed to perform at windloads in excess of 3.5 kPa.
– Designed to meet the CWCT standards so meets
BS:EN, ASTM, AAMA specifications.
PERFORMANCE

– Thermally Broken frameless outward opening vent panels
can be incorporated.
– Extruded gaskets seal between frames to provide secure
weather resistance.
– Thermal Break frameless outward opening vent panels can
be incorporated.
INSTALLATION

– Allows rapid on-site installation of factory prefabricated
panels usually without the need for external access to the
building.
PRODUCT DETAILS

The Brital unitised curtain walling system is designed to give an alternative to the structurally glazed and capped Brital curtain walling systems. Unitised curtain walling systems have been growing in popularity and have many advantages over the conventional stick system particularly for tall building projects. Unitised systems are easy to erect on site and should give faster site programs. The build quality is improved and the quality of factory manufactured units is easier to control. Glazed units are fitted into the unitised frames using a recognised and approved structural grade silicone, installed with the manufacturer’s recommendations. The system currently offers frames for three types of glazed units, a 28 to 38mm thick double glazed fixed light unit, a 6mm single glazed spandrel panel and a 28 or 36mm double glazed top hung casement. used in conjunction with each other an almost limitless number of permutations can be achieved to suit most architectural requirements. Fixed double glazing incorporates flush edged double glazing units whilst the top hung windows utilise glazing units that have stepped edges to enable clean and continuous sight lines whilst providing high levels of performance. All low all double glazed units must be dual sealed with a P.I.B. primary seal and a silicone secondary seal suitable for units being placed in SSG applications.
